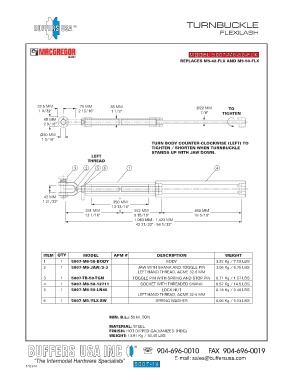

® TURNBUCKLE
FLEXILASH

MODEL 5007-M6-50-FLX
REPLACES M5-42-FLX AND M5-50-FLX

32.5 MM 75 MM 38 MM Ø22 MM
TO
1 9/32" 2 15/16" 1 1/2" 7/8" TIGHTEN
65 MM
2 9/16"
Ø 30 MM
1 3/16"
TURN BODY COUNTER-CLOCKWISE (LEFT) TO
TIGHTEN / SHORTEN WHEN TURNBUCKLE
STANDS UP WITH JAW DOWN.
LEFT
THREAD
3 2 5 6 1 4

42 MM
1 21/32" 350 MM
13 13/16"
331 MM 252 MM 490 MM
13 1/16" 9 15/16" 19 5/16"
1,083 MM - 1,423 MM
42 21/32" - 56 1/32"

ITEM QTY MODEL APM # DESCRIPTION WEIGHT
1 1 5007-M6-50-BODY BODY 3.22 Kg / 7.10 LBS
2 1 5007-M6-JAW/2-3 JAW WITH SHANK AND TOGGLE PIN 3.06 Kg / 6.75 LBS
LEFT HAND THREAD, ACME 32-6 MM
3 1 5007-TB-50-TGN TOGGLE PIN WITH SPRING AND STOP PIN 0.71 Kg / 1.57 LBS
4 1 5007-M6-50-12711 SOCKET WITH THREADED SHANK 6.57 Kg / 14.5 LBS
5 1 5007-M6-50-LN46 LOCK NUT 0.18 Kg / 0.40 LBS
LEFT HAND THREAD, ACME 32-6 MM
6 1 5007-M5/FLX-SW SPRING WASHER 0.06 Kg / 0.13 LBS

MIN. B.L.: 50 M. TON
MATERIAL: STEEL
FINISH: HOT DIPPED GALVANIZED (HDG)
WEIGHT: 13.81 Kg / 30.45 LBS

®
