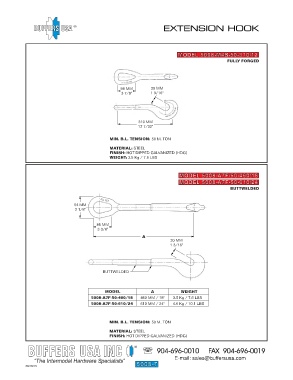

Page 120 - 2017 Lashing Catalog Web_Neat

® EXTENSION HOOK

MODEL 5008-M4S-50-310/12
FULLY FORGED

98 MM 30 MM
3 7/8" 1 3/16"

310 MM
12 7/32"

MIN. B.L. TENSION: 50 M. TON
MATERIAL: STEEL
FINISH: HOT DIPPED GALVANIZED (HDG)
WEIGHT: 3.5 Kg / 7.6 LBS

MODEL 5008-A7F-50-460/18
MODEL 5008-A7F-50-610/24
BUTTWELDED

54 MM
2 1/8"

85 MM
3 3/8"
A
30 MM
1 3/16"

BUTTWELDED

MODEL A WEIGHT
5008-A7F-50-460/18 460 MM / 18" 3.5 Kg / 7.6 LBS
5008-A7F-50-610/24 610 MM / 24" 4.6 Kg / 10.1 LBS

MIN. B.L. TENSION: 50 M. TON

MATERIAL: STEEL
FINISH: HOT DIPPED GALVANIZED (HDG)

®
904-696-0010 FAX 904-696-0019
E-mail: sales@buffersusa.com
5008-7
06/19/15
