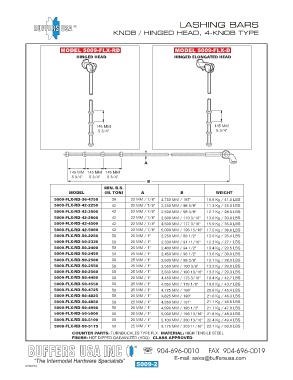

LASHING BARS
®
KNOB / HINGED HEAD, 4-KNOB TYPE

MODEL 5009-FLX-RD MODEL 5009-FLX-D
HINGED HEAD HINGED ELONGATED HEAD

145 MM 145 MM
5 3/4" 5 3/4"

A
145 MM 145 MM 145 MM
5 3/4" 5 3/4" 5 3/4"
B
MIN. B.S.
MODEL (M. TON) A B WEIGHT
5009-FLX-RD-36-4750 36 22 MM / 7/8" 4,750 MM / 187" 18.6 Kg / 41.0 LBS
5009-FLX-RD-42-2250 42 22 MM / 7/8" 2,250 MM / 88 5/8" 11.3 Kg / 25.0 LBS
5009-FLX-RD-42-2500 42 22 MM / 7/8" 2,500 MM / 98 3/8" 12.7 Kg / 28.0 LBS
5009-FLX-RD-42-2800 42 22 MM / 7/8" 2,800 MM / 110 3/16" 13.6 Kg / 30.0 LBS
5009-FLX-RD-42-4500 42 22 MM / 7/8" 4,500 MM / 177 3/16" 15.9 Kg / 35.0 LBS
5009-FLX-RD-42-5000 42 22 MM / 7/8" 5,000 MM / 196 15/16" 17.5 Kg / 38.6 LBS
5009-FLX-RD-50-2250 50 25 MM / 1" 2,250 MM / 88 1/2" 12.0 Kg / 26.4 LBS
5009-FLX-RD-50-2330 50 25 MM / 1" 2,330 MM / 91 11/16" 12.3 Kg / 27.1 LBS
5009-FLX-RD-50-2400 50 25 MM / 1" 2,400 MM / 94 1/2" 13.4 Kg / 29.5 LBS
5009-FLX-RD-50-2450 50 25 MM / 1" 2,450 MM / 96 1/2" 13.6 Kg / 30.0 LBS
5009-FLX-RD-50-2500 50 25 MM / 1" 2,500 MM / 98 3/8" 12.7 Kg / 28.0 LBS
5009-FLX-RD-50-2550 50 25 MM / 1" 2,550 MM / 100 3/8" 13.2 Kg / 29.0 LBS
5009-FLX-RD-50-2560 50 25 MM / 1" 2,560 MM / 100 13/16" 13.3 Kg / 29.3 LBS
5009-FLX-RD-50-4450 50 25 MM / 1" 4,450 MM / 175 3/16" 19.4 Kg / 42.7 LBS
5009-FLX-RD-50-4550 50 25 MM / 1" 4,550 MM / 179 1/8" 19.8 Kg / 43.7 LBS
5009-FLX-RD-50-4725 50 25 MM / 1" 4,725 MM / 186" 20.6 Kg / 45.4 LBS
5009-FLX-RD-50-4825 50 25 MM / 1" 4,825 MM / 190" 21.0 Kg / 46.3 LBS
5009-FLX-RD-50-4850 50 25 MM / 1" 4,850 MM / 191" 21.1 Kg / 46.5 LBS
5009-FLX-RD-50-4990 50 25 MM / 1" 4,990 MM / 196 1/2" 21.7 Kg / 47.9 LBS
5009-FLX-RD-50-5000 50 25 MM / 1" 5,000 MM / 196 13/16" 21.8 Kg / 48.0 LBS
5009-FLX-RD-50-5100 50 25 MM / 1" 5,100 MM / 200 13/16" 22.4 Kg / 49.4 LBS
5009-FLX-RD-50-5175 50 25 MM / 1" 5,175 MM / 203 11/16" 22.7 Kg / 50.0 LBS
COUNTER PARTS: TURNBUCKLES TYPE FLX MATERIAL: HIGH TENSILE STEEL
FINISH: HOT DIPPED GALVANIZED (HDG) CLASS APPROVED
®
