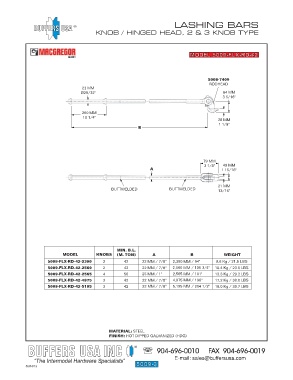

P. 123
® LASHING BARS
KNOB / HINGED HEAD, 2 & 3 KNOB TYPE
MODEL 5009-FLX-RD-42
5008-7409
RODHEAD
23 MM
Ø29/32" 84 MM
3 5/16"
260 MM
10 1/4"
28 MM
1 1/8"
B
79 MM
3 1/8" 49 MM
A 1 15/16"
21 MM
BUTTWELDED BUTTWELDED 13/16"
MIN. B.L.
MODEL KNOBS (M. TON) A B WEIGHT
5009-FLX-RD-42-2390 2 42 22 MM / 7/8" 2,390 MM / 94" 9.8 Kg / 21.5 LBS
5009-FLX-RD-42-2560 2 42 22 MM / 7/8" 2,560 MM / 100 3/4" 10.4 Kg / 23.0 LBS
5009-FLX-RD-42-2565 4 50 25 MM / 1" 2,565 MM / 101" 13.3 Kg / 29.2 LBS
5009-FLX-RD-42-4975 3 42 22 MM / 7/8" 4,975 MM / 196" 17.2 Kg / 38.0 LBS
5009-FLX-RD-42-5195 3 42 22 MM / 7/8" 5,195 MM / 204 1/2" 18.0 Kg / 39.7 LBS
MATERIAL: STEEL
FINISH: HOT DIPPED GALVANIZED (HDG)
®
904-696-0010 FAX 904-696-0019
E-mail: sales@buffersusa.com
5009-3
06/04/13
