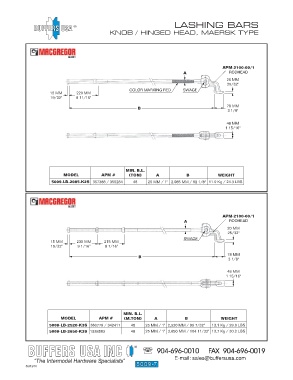

® LASHING BARS
KNOB / HINGED HEAD, MAERSK TYPE
APM-2100-00/1
A RODHEAD
20 MM
25/32"
COLOR MARKING RED SWAGE
15 MM 220 MM
19/32" 8 11/16"
78 MM
B
3 1/8"
48 MM
1 15/16"
MIN. B.L.
MODEL APM # (TON) A B WEIGHT
5009-LB-2085-K2S 357388 / 355284 48 25 MM / 1" 2,085 MM / 82 1/8" 11.0 Kg / 24.3 LBS
APM-2100-00/1
A RODHEAD
20 MM
25/32"
SWAGE
15 MM 230 MM 215 MM
19/32" 9 1/16" 8 7/16"
78 MM
B
3 1/8"
48 MM
1 15/16"
MIN. B.L.
MODEL APM # (M.TON) A B WEIGHT
5009-LB-2520-K3S 360779 / 342417 48 25 MM / 1" 2,520 MM / 99 7/32" 13.1 Kg / 28.9 LBS
5009-LB-2650-K3S 1938583 48 25 MM / 1" 2,650 MM / 104 11/32" 13.7 Kg / 30.2 LBS
®
