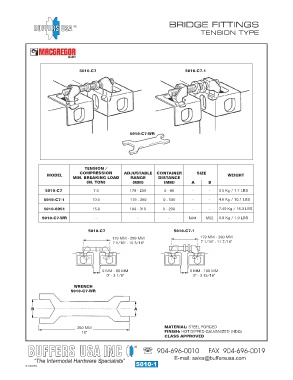

BRIDGE FITTINGS
®
TENSION TYPE

5010-C7 5010-C7-1

5010-C7-WR

TENSION /
COMPRESSION ADJUSTABLE CONTAINER SIZE
MODEL WEIGHT
MIN. BREAKING LOAD RANGE DISTANCE
(M. TON) (MM) (MM) A B
5010-C7 7.0 179 - 259 0 - 80 - - 3.5 Kg / 7.7 LBS

5010-C7-1 10.0 179 - 290 0 - 100 - - 4.6 Kg / 10.1 LBS
5010-6951 15.0 104 - 310 0 - 200 - - 7.40 Kg / 16.3 LBS
5010-C7-WR - - - M41 M52 0.9 Kg / 1.9 LBS

5010-C7 5010-C7-1
179 MM - 259 MM 179 MM - 290 MM
7 1/16" - 10 3/16" 7 1/16" - 11 7/16"

0 MM - 80 MM 0 MM - 100 MM
0" - 3 1/8" 0" - 3 15/16"

WRENCH
5010-C7-WR

B A

250 MM MATERIAL: STEEL FORGED
10" FINISH: HOT DIPPED GALVANIZED (HDG)
CLASS APPROVED

®
