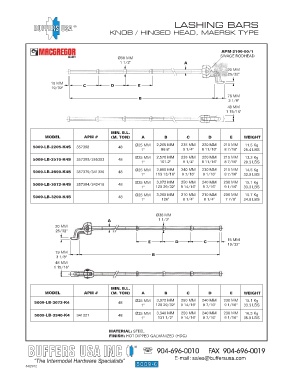

® LASHING BARS
KNOB / HINGED HEAD, MAERSK TYPE

APM-2100-00/1
SWAGE RODHEAD
Ø 38 MM
1 1/2" A
20 MM
25/32"
15 MM C D E
19/32"
78 MM
B
3 1/8"
48 MM
1 15/16"

MIN. B.L.
MODEL APM # (M. TON) A B C D E WEIGHT

5009-LB-2205-K4S 357398 48 Ø25 MM 2,205 MM 235 MM 220 MM 215 MM 11.5 Kg
1" 86.8" 9 1/4" 8 11/16" 8 7/16" 25.4 LBS
5009-LB-2570-K4S 357389/355303 48 Ø25 MM 2,570 MM 235 MM 220 MM 215 MM 13.3 Kg
1" 101.2" 9 1/4" 8 11/16" 8 7/16" 29.3 LBS
5009-LB-2890-K4S 357379/341326 48 Ø25 MM 2,890 MM 240 MM 230 MM 215 MM 14.5 Kg
1" 113 13/16" 9 7/16" 9 1/16" 8 7/16" 32.0 LBS
5009-LB-3072-K4S 357384/342418 48 Ø25 MM 3,072 MM 250 MM 240 MM 230 MM 15.1 Kg
1" 120 29/32" 9 14/16" 9 7/16" 9 1/16" 33.3 LBS

5009-LB-3200-K4S 48 Ø25 MM 3,200 MM 210 MM 210 MM 200 MM 15.7 Kg
1" 126" 8 1/4" 8 1/4" 7 7/8" 34.6 LBS

Ø 38 MM
A 1 1/2"
20 MM
25/32"
15 MM
E D C
19/32"
79 MM
3 1/8" B
48 MM
1 15/16"

MIN. B.L.
MODEL APM # (M. TON) A B C D E WEIGHT
5009-LB-3072-K4 48 Ø25 MM 3,072 MM 250 MM 240 MM 230 MM 15.1 Kg
1" 120 29/32" 9 14/16" 9 7/16" 9 1/16" 33.3 LBS

5009-LB-3340-K4 341327 48 Ø25 MM 3,340 MM 250 MM 240 MM 230 MM 16.3 Kg
1" 131 1/2" 9 14/16" 9 7/16" 9 1/16" 35.9 LBS

MATERIAL: STEEL
FINISH: HOT DIPPED GALVANIZED (HDG)

®
