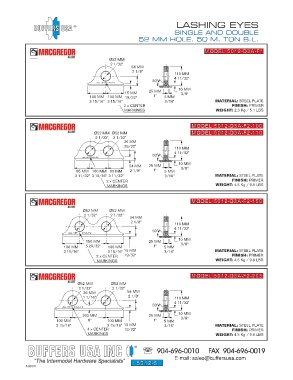

® LASHING EYES
SINGLE AND DOUBLE
52 MM HOLE, 50 M. TON B.L.

MODEL 5012-D3A-F1

Ø52 MM
2 1/32"
54 MM
2 1/8"
110 MM
4 11/32"
50º
ALL SET D3A-F1
15 MM 25 MM 10 MM
3/8"
100 MM 100 MM 19/32" 1" 5 MM
3 15/16" 3 15/16" 3/16" MATERIAL: STEEL PLATE
2 x CENTER FINISH: PRIMER
MARKINGS WEIGHT: 2.3 Kg / 5.1 LBS

MODEL 5012-D3A-F2-100
Ø52 MM Ø52 MM MODEL 5012-D3A-F2-110
2 1/32" 2 1/32"
20 MM
25/32"
110 MM
4 11/32"
50º
ALL SET D3A-F2
54 MM 25 MM 10 MM
3/8"
85 MM 100 MM 85 MM 2 1/8" 1" 5 MM
3 11/32" 3 15/16" 3 11/32" 3/16" MATERIAL: STEEL PLATE
2 x CENTER FINISH: PRIMER
MARKINGS WEIGHT: 4.5 Kg / 9.9 LBS

MODEL 5012-D3A-F2-150

Ø52 MM Ø52 MM
2 1/32" 2 1/32"
54 MM
2 1/8"
110 MM
4 11/32"
50º
ALL SET D3A-F2
150 MM 25 MM 10 MM
3/8"
100 MM 5 29/32" 100 MM 1" 5 MM
3 15/16" 3 15/16" 15 MM 3/16" MATERIAL: STEEL PLATE
2 x CENTER 19/32" FINISH: PRIMER
MARKINGS WEIGHT: 4.5 Kg / 9.9 LBS

MODEL 5012-D3A-F2-203
Ø52 MM Ø52 MM
2 1/32" 2 1/32"
26 MM 54 MM
1 1/16" 2 1/8" 110 MM
4 11/32"
50º
ALL SET D3A-F2
203 MM 25 MM 10 MM
100 MM 8" 100 MM 1" 5 MM 3/8"
3 15/16" 3 15/16" 15 MM 3/16" MATERIAL: STEEL PLATE
4 x CENTER 19/32" FINISH: PRIMER
MARKINGS WEIGHT: 4.5 Kg / 9.9 LBS

®
