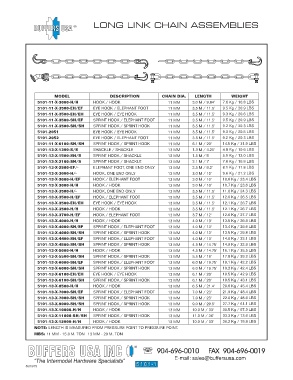

® LONG LINK CHAIN ASSEMBLIES

MODEL DESCRIPTION CHAIN DIA. LENGTH WEIGHT
5101-11-X-3000-H/H HOOK / HOOK 11 MM 3.0 M / 9.84' 7.6 Kg / 16.8 LBS
5101-11-X-3500-EH/EF EYE HOOK / ELEPHANT FOOT 11 MM 3.5 M / 11.5' 9.5 Kg / 20.9 LBS
5101-11-X-3500-EH/EH EYE HOOK / EYE HOOK 11 MM 3.5 M / 11.5' 9.3 Kg / 20.6 LBS
5101-11-X-3500-SH/EF SPRINT HOOK / ELEPHANT FOOT 11 MM 3.5 M / 11.5' 9.5 Kg / 20.9 LBS
5101-11-X-3500-SH/SH SPRINT HOOK / SPRINT HOOK 11 MM 3.5 M / 11.5' 9.2 Kg / 20.3 LBS
5101-2051 EYE HOOK / EYE HOOK 11 MM 3.5 M / 11.5' 9.3 Kg / 20.5 LBS
5101-2052 EYE HOOK / ELEPHANT FOOT 11 MM 3.5 M / 11.5' 9.2 Kg / 20.3 LBS
5101-11-X-6100-SH/SH SPRINT HOOK / SPRINT HOOK 11 MM 6.1 M / 20' 14.5 Kg / 31.9 LBS
5101-13-X-1300-S/S SHACKLE / SHACKLE 13 MM 1.3 M / 4.25' 4.8 Kg / 10.6 LBS
5101-13-X-1500-SH/S SPRINT HOOK / SHACKLE 13 MM 1.5 M / 5' 5.9 Kg / 13.0 LBS
5101-13-X-2100-SH/S SPRINT HOOK / SHACKLE 13 MM 2.1 M / 7' 7.6 Kg / 16.8 LBS
5101-13-X-2500-EF/- ELEPHANT FOOT, ONE END ONLY 13 MM 2.5 M / 8.2' 8.1 Kg / 17.8 LBS
5101-13-X-3000-H/- HOOK, ONE END ONLY 13 MM 3.0 M / 10' 9.6 Kg / 21.2 LBS
5101-13-X-3000-H/EF HOOK / ELEPHANT FOOT 13 MM 3.0 M / 10' 10.6 Kg / 23.4 LBS
5101-13-X-3000-H/H HOOK / HOOK 13 MM 3.0 M / 10' 10.7 Kg / 23.6 LBS
5101-13-X-3500-H/- HOOK, ONE END ONLY 13 MM 3.5 M / 11.5' 11.0 Kg / 24.3 LBS
5101-13-X-3500-H/EF HOOK / ELEPHANT FOOT 13 MM 3.5 M / 11.5' 12.0 Kg / 26.5 LBS
5101-13-X-3500-EH/EH EYE HOOK / EYE HOOK 13 MM 3.5 M / 11.5' 12.1 Kg / 26.7 LBS
5101-13-X-3500-H/H HOOK / HOOK 13 MM 3.5 M / 11.5' 12.1 Kg / 26.7 LBS
5101-13-X-3700-H/EF HOOK / ELEPHANT FOOT 13 MM 3.7 M / 12' 12.6 Kg / 27.7 LBS
5101-13-X-4000-H/H HOOK / HOOK 13 MM 4.0 M / 13' 13.5 Kg / 29.8 LBS
5101-13-X-4000-SH/EF SPRINT HOOK / ELEPHANT FOOT 13 MM 4.0 M / 13' 13.4 Kg / 29.6 LBS
5101-13-X-4000-SH/SH SPRINT HOOK / SPRINT HOOK 13 MM 4.0 M / 13' 13.5 Kg / 29.8 LBS
5101-13-X-4400-SH/EF SPRINT HOOK / ELEPHANT FOOT 13 MM 4.0 M / 13' 14.6 Kg / 32.1 LBS
5101-13-X-4500-SH/SH SPRINT HOOK / SPRINT HOOK 13 MM 4.5 M / 14.75' 14.9 Kg / 32.9 LBS
5101-13-X-5000-H/H HOOK / HOOK 13 MM 4.5 M / 14.75' 16.1 Kg / 35.5 LBS
5101-13-X-5500-SH/SH SPRINT HOOK / SPRINT HOOK 13 MM 5.5 M / 18' 17.8 Kg / 39.2 LBS
5101-13-X-6000-SH/EF SPRINT HOOK / ELEPHANT FOOT 13 MM 6.0 M / 19.75' 19.1 Kg / 42.2 LBS
5101-13-X-6000-SH/SH SPRINT HOOK / SPRINT HOOK 13 MM 6.0 M / 19.75' 19.2 Kg / 42.4 LBS
5101-13-X-6100-EH/EH EYE HOOK / EYE HOOK 13 MM 6.1 M / 20' 19.5 Kg / 42.9 LBS
5101-13-X-6100-SH/SH SPRINT HOOK / SPRINT HOOK 13 MM 6.1 M / 20' 19.5 Kg / 43.1 LBS
5101-13-X-6500-H/H HOOK / HOOK 13 MM 6.5 M / 21.4' 20.6 Kg / 45.4 LBS
5101-13-X-7000-SH/EF SPRINT HOOK / ELEPHANT FOOT 13 MM 7.0 M / 23' 21.9 Kg / 48.4 LBS
5101-13-X-7000-SH/SH SPRINT HOOK / SPRINT HOOK 13 MM 7.0 M / 23' 22.0 Kg / 48.6 LBS
5101-13-X-9000-SH/SH SPRINT HOOK / SPRINT HOOK 13 MM 9.0 M / 29.5' 27.7 Kg / 61.1 LBS
5101-13-X-10000-H/H HOOK / HOOK 13 MM 10.0 M / 33' 30.5 Kg / 67.3 LBS
5101-13-X-11000-SH/SH SPRINT HOOK / SPRINT HOOK 13 MM 11.0 M / 36' 33.3 Kg / 73.6 LBS
5101-13-X-12000-H/H HOOK / HOOK 13 MM 10.0 M / 33' 36.2 Kg / 79.8 LBS
NOTE: LENGTH IS MEASURED FROM PRESSURE POINT TO PRESSURE POINT.
MBS: 11 MM - 15.0 M. TON 13 MM - 20 M. TON

®
