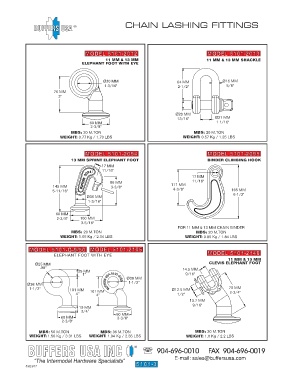

Page 186 - 2017 Lashing Catalog Web_Neat

® CHAIN LASHING FITTINGS

MODEL 5101-2012 MODEL 5101-2013
11 MM & 13 MM 11 MM & 13 MM SHACKLE
ELEPHANT FOOT WITH EYE

Ø30 MM 64 MM Ø16 MM
1 3/16" 2-1/2" 5/8"
76 MM
3"

Ø20 MM
13/16" Ø27 MM
60 MM 1 1/16"
2-3/8"
MBS: 20 M.TON MBS: 20 M.TON
WEIGHT: 0.77 Kg / 1.70 LBS WEIGHT: 0.57 Kg / 1.25 LBS

MODEL 5101-2094 MODEL 5101-2095
13 MM SPRINT ELEPHANT FOOT BINDER CLIMBING HOOK
17 MM
11/16"
17 MM
86 MM 11/16"
145 MM 3-3/8" 111 MM
5-11/16" 4-3/8" 165 MM
Ø30 MM 6-1/2"
1-3/16"

60 MM
2-3/8" 100 MM
3-5/16"
FOR 11 MM & 13 MM CHAIN BINDER
MBS: 20 M.TON MBS: 20 M.TON
WEIGHT: 1.06 Kg / 2.34 LBS WEIGHT: 0.85 Kg / 1.84 LBS

MODEL 5101-G-9/50 MODEL 5101-2105
ELEPHANT FOOT WITH EYE MODEL 5101-2148
11 MM & 13 MM
Ø25 MM CLEVIS ELEPHANT FOOT
.98" 14.5 MM
25 MM
1” 9/16"
Ø38 MM
Ø38 MM 1-1/2"
1-1/2" 101 MM 101 MM Ø12.5 MM 70 MM
4” 4" 1/2" 2-3/4"
13.7 MM
9/16"
19 MM
3/4”
60 MM 60 MM
2-3/8"
2-3/8"
MBS: 50 M.TON MBS: 36 M.TON MBS: 20 M.TON
WEIGHT: 1.50 Kg / 3.31 LBS WEIGHT: 1.04 Kg / 2.35 LBS WEIGHT: 1.0 Kg / 2.2 LBS

®
904-696-0010 FAX 904-696-0019
E-mail: sales@buffersusa.com
5101-3
03/23/17
