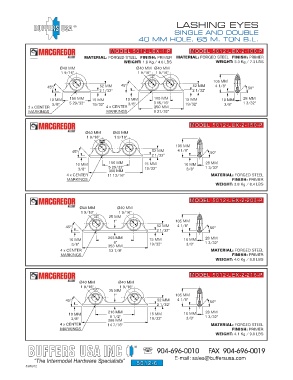

Page 180 - 2017 Lashing Catalog Web_Neat

® LASHING EYES
SINGLE AND DOUBLE
40 MM HOLE, 65 M. TON B.L.

MODEL 5012-LEX-1-P MODEL 5012-LEX-2-100-P
MATERIAL: FORGED STEEL FINISH: PRIMER MATERIAL: FORGED STEEL FINISH: PRIMER
WEIGHT: 1.8 Kg / 4.0 LBS WEIGHT: 3.3 Kg / 7.3 LBS
Ø40 MM Ø40 MM Ø40 MM
1 9/16" 1 9/16" 1 9/16"
ALL SET
LEX-2
105 MM
45º 52 MM 45º 52 MM 4 1/8" 50º
2 1/32" 2 1/32"
10 MM 150 MM 15 MM 10 MM 100 MM 15 MM 10 MM 28 MM
3/8" 5 29/32" 19/32" 3/8" 3 15/16" 19/32" 3/8" 1 3/32"
2 x CENTER 4 x CENTER 250 MM
MARKINGS MARKINGS 9 27/32"

MODEL 5012-LEX-2-150-P
Ø40 MM Ø40 MM
1 9/16" 1 9/16"
105 MM
45º 52 MM 4 1/8" 50º
2 1/32"
10 MM 150 MM 15 MM 10 MM 28 MM
3/8" 5 29/32" 19/32" 3/8" 1 3/32"
300 MM
4 x CENTER 11 13/16" MATERIAL: FORGED STEEL
MARKINGS FINISH: PRIMER
WEIGHT: 3.8 Kg / 8.4 LBS

MODEL 5012-LEX-2-203-P

Ø40 MM Ø40 MM
1 9/16" 1 9/16"
ALL SET 25 MM
LEX-2
1" 105 MM
45º 52 MM 4 1/8" 50º
2 1/32"
10 MM 203 MM 15 MM 10 MM 28 MM
8"
3/8" 353 MM 19/32" 3/8" 1 3/32"
4 x CENTER 13 7/8" MATERIAL: FORGED STEEL
MARKINGS FINISH: PRIMER
WEIGHT: 4.0 Kg / 8.8 LBS

MODEL 5012-LEX-2-216-P
Ø40 MM Ø40 MM
1 9/16" 1 9/16"
ALL SET
LEX-2 25 MM
1" 105 MM
45º 52 MM 4 1/8" 50º
2 1/32"
216 MM 28 MM
10 MM 15 MM 10 MM
8 1/2"
3/8" 366 MM 19/32" 3/8" 1 3/32"
4 x CENTER 14 7/16" MATERIAL: FORGED STEEL
MARKINGS FINISH: PRIMER
WEIGHT: 4.1 Kg / 9.0 LBS

®
