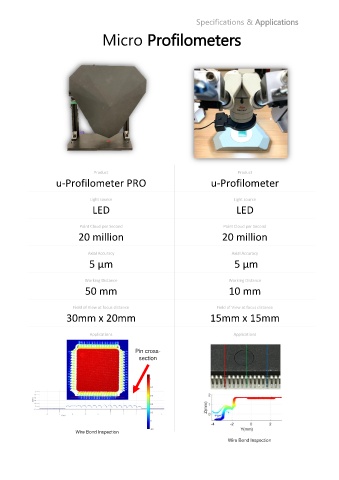

Specifications & Applications
Micro Profilometers
Product Product
u-Profilometer PRO u-Profilometer
Light source Light source
LED LED
Point Cloud per Second Point Cloud per Second
20 million 20 million
Axial Accuracy Axial Accuracy
5 µm 5 µm
Working Distance Working Distance
50 mm 10 mm
Field of View at focus distance Field of View at focus distance
30mm x 20mm 15mm x 15mm
Applications Applications
Pin cross-
section
diagram
Wire Bond Inspection
Wire Bond Inspection
