Page 28 - Envision E-Catalog

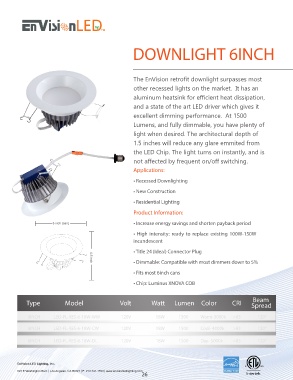

DOWNLIGHT 6INCH

The EnVision retrofit downlight surpasses most
other recessed lights on the market. It has an
aluminum heatsink for efficient heat dissipation,

and a state of the art LED driver which gives it
excellent dimming performance. At 1500
Lumens, and fully dimmable, you have plenty of

light when desired. The architectural depth of
1.5 inches will reduce any glare emmited from
the LED Chip. The light turns on instantly, and is

not affected by frequent on/off switching.
Applications:

• Recessed Downlighting

• New Construction

• Residential Lighting
Product Information:

6 inch (can) • Increase energy savings and shorten payback period
• High intensity: ready to replace existing 100W-150W
incandescent

• Title 24 (Ideal) Connector Plug
• Dimmable: Compatible with most dimmers down to 5%
4.5 inch
• Fits most 6inch cans

• Chip: Luminus XNOVA COB

Beam
Type Model Volt Watt Lumen Color CRI Spread

6INCH LED-FL-RES-6-18W-WW 120V 18W 1500 Warm-3000k >83 120°

6INCH LED-FL-RES-6-18W-CW 120V 18W 1500 Cool- 4000k >83 120°

6INCH LED-FL-RES-6-18W-DL 120V 18W 1500 Day- 5000k >83 120°

EnVision LED Lighting, Inc.
801 E Washington Blvd. | Los Angeles, CA 90021 | P: 213-741-1550 | www.envisionledlighting.com
26
