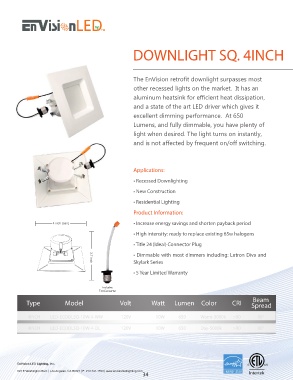

Page 36 - Envision E-Catalog

DOWNLIGHT SQ. 4INCH

The EnVision retrofit downlight surpasses most
other recessed lights on the market. It has an
aluminum heatsink for efficient heat dissipation,

and a state of the art LED driver which gives it
excellent dimming performance. At 650
Lumens, and fully dimmable, you have plenty of

light when desired. The light turns on instantly,
and is not affected by frequent on/off switching.

Applications:

• Recessed Downlighting

• New Construction

• Residential Lighting
Product Information:

4 inch (can) • Increase energy savings and shorten payback period
• High intensity: ready to replace existing 65w halogens

• Title 24 (Ideal) Connector Plug

• Dimmable with most dimmers including: Lutron Diva and
Skylark Series
3.7 inch
• 5 Year Limited Warranty

Includes
T24 Converter
Beam
Type Model Volt Watt Lumen Color CRI Spread

4INCH LED-ECODLSQ-10W-4-WW 120V 10W 650 Warm-3000k >90 80°

4INCH LED-ECODLSQ-10W-4-DL 120V 10W 650 Day-5000k >90 80°

EnVision LED Lighting, Inc.
801 E Washington Blvd. | Los Angeles, CA 90021 | P: 213-741-1550 | www.envisionledlighting.com
34
