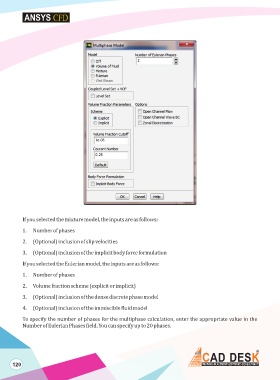

If you selected the mixture model, the inputs are as follows:
1. Number of phases
2. (Optional) inclusion of slip velocities
3. (Optional) inclusion of the implicit body force formulation
If you selected the Eulerian model, the inputs are as follows:
1. Number of phases
2. Volume fraction scheme (explicit or implicit)
3. (Optional) inclusion of the dense discrete phase model
4. (Optional) inclusion of the immiscible fluid model
To specify the number of phases for the multiphase calculation, enter the appropriate value in the
Number of Eulerian Phases field. You can specify up to 20 phases.
