w Offset 2: The second of two offset distances for a Rectangular pattern. This is the distance between
each instance of the pattern in the second direction. Its value must be non-zero.

w Copies 2: The number of copies to create in the second direction for Rectangular patterns. Its value
must be positive. The default value is 1.
Body Operation: The Body Operation feature allows you to manipulate bodies. Any type of body can be
used with body operations, regardless of whether it is active or frozen. However, point feature points
(PF points), attached to the faces or edges of the selected bodies, and are not affected by the body
operation.
The Body Operation feature is available via the Create Menu. It has up to ten options, although not all of
them will be available at all times. For selections, bodies are selected via the Apply/Cancel button
property in the Details View. Planes are also selected via the Apply/Cancel button property.

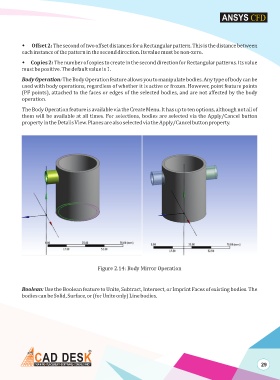

Figure 2.14: Body Mirror Operation

Boolean: Use the Boolean feature to Unite, Subtract, Intersect, or Imprint Faces of existing bodies. The
bodies can be Solid, Surface, or (for Unite only) Line bodies.

29
