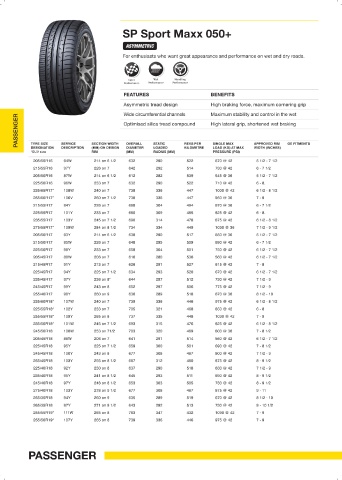

Page 58 - GDTNZ18_Product_Catalogue_2.1_Print_Ready_Neat

SP Sport Maxx 050+

ASYMMETRIC
For enthusiasts who want great appearance and performance on wet and dry roads.

Sport Wet Handling
Performance Performance Performance
FEATURES BENEFITS

Asymmetric tread design High braking force, maximum cornering grip
Maximum stability and control in the wet
Wide circumferential channels
PASSENGER Optimised silica tread compound High lateral grip, shortened wet braking

TYRE SIZE
DESCRIPTION
LOADED
DESIGNATION
WIDTH (INCHES)
(MM) ON DESIGN
DIAMETER
LOAD (KG) AT MAX
KILOMETRE
RADIUS (MM)
PRESSURE (PSI)
RIM
*SUV size SERVICE SECTION WIDTH OVERALL STATIC REVS PER SINGLE MAX APPROVED RIM OE FITMENTS
(MM)
205/55R16 94W 214 on 6 1/2 632 290 522 670 @ 42 5 1/2 - 7 1/2
215/55R16 97Y 226 on 7 642 292 514 730 @ 42 6 - 7 1/2
205/50R16 87W 214 on 6 1/2 612 282 539 545 @ 36 5 1/2 - 7 1/2
225/50R16 96W 233 on 7 632 290 522 710 @ 42 6 - 8.
235/65R17* 108W 240 on 7 738 336 447 1000 @ 42 6 1/2 - 8 1/2
255/60R17* 106V 260 on 7 1/2 738 336 447 950 @ 36 7 - 9
215/55R17 94Y 226 on 7 668 304 494 670 @ 36 6 - 7 1/2
225/55R17 101Y 233 on 7 680 309 485 825 @ 42 6 - 8.
235/55R17 103Y 245 on 7 1/2 690 314 478 875 @ 42 6 1/2 - 8 1/2
275/55R17* 109W 284 on 8 1/2 734 334 449 1030 @ 36 7 1/2 - 9 1/2
205/50R17 93Y 214 on 6 1/2 638 290 517 650 @ 36 5 1/2 - 7 1/2
215/50R17 95W 226 on 7 648 295 509 690 @ 42 6 - 7 1/2
225/50R17 98Y 233 on 7 658 304 501 750 @ 42 6 1/2 - 7 1/2
205/45R17 88W 206 on 7 616 280 536 560 @ 42 6 1/2 - 7 1/2
215/45R17 91Y 213 on 7 626 291 527 615 @ 42 7 - 8
225/45R17 94Y 225 on 7 1/2 634 293 520 670 @ 42 6 1/2 - 7 1/2
235/45R17 97Y 236 on 8" 644 297 512 730 @ 42 7 1/2 - 9
245/45R17 99Y 243 on 8 652 297 506 775 @ 42 7 1/2 - 9
255/40R17 98Y 260 on 9 636 289 518 670 @ 36 8 1/2 - 10
235/60R18* 107W 240 on 7 739 336 446 975 @ 42 6 1/2 - 8 1/2
225/55R18* 102Y 233 on 7 705 321 468 850 @ 42 6 - 8
255/55R18* 109Y 265 on 8 737 335 448 1030 @ 42 7 - 9
235/50R18* 101W 245 on 7 1/2 693 315 476 825 @ 42 6 1/2 - 8 1/2
245/50R18 100W 253 on 71/2 703 320 469 800 @ 36 7 - 8 1/2
205/45R18 88W 206 on 7 641 291 514 560 @ 42 6 1/2 - 7 1/2
225/45R18 95Y 225 on 7 1/2 659 300 501 690 @ 42 7 - 8 1/2
245/45R18 100Y 243 on 8 677 308 487 800 @ 42 7 1/2 - 9
255/45R18 103Y 255 on 8 1/2 687 312 480 875 @ 42 8 - 9 1/2
225/40R18 92Y 230 on 8 637 290 518 630 @ 42 7 1/2 - 9
235/40R18 95Y 241 on 8 1/2 645 293 511 690 @ 42 8 - 9 1/2
245/40R18 97Y 248 on 8 1/2 653 303 505 730 @ 42 8 - 9 1/2
275/40R18 103Y 278 on 9 1/2 677 308 487 875 @ 42 9 - 11
255/35R18 94Y 260 on 9 635 289 519 670 @ 42 8 1/2 - 10
265/35R18 97Y 271 on 9 1/2 643 292 513 730 @ 42 9 - 10 1/2
255/55R19* 111W 265 on 8 763 347 432 1090 @ 42 7 - 9
255/50R19* 107Y 265 on 8 739 336 446 975 @ 42 7 - 9

PASSENGER
