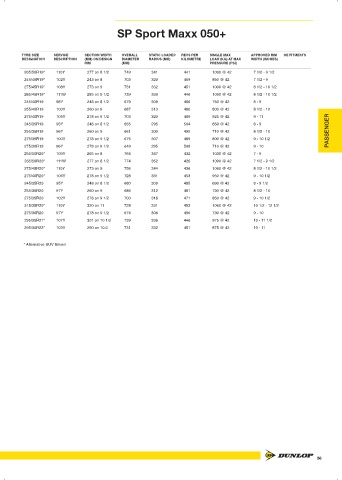

Page 59 - GDTNZ18_Product_Catalogue_2.1_Print_Ready_Neat

SP Sport Maxx 050+

TYRE SIZE SERVICE SECTION WIDTH OVERALL STATIC LOADED REVS PER SINGLE MAX APPROVED RIM OE FITMENTS
DESIGNATION DESCRIPTION (MM) ON DESIGN DIAMETER RADIUS (MM) KILOMETRE LOAD (KG) AT MAX WIDTH (INCHES)
RIM (MM) PRESSURE (PSI)
265/50R19* 110Y 277 on 8 1/2 749 341 441 1060 @ 42 7 1/2 - 9 1/2
245/45R19* 102Y 243 on 8 703 320 469 850 @ 42 7 1/2 - 9
275/45R19* 108Y 273 on 9 731 332 451 1000 @ 42 8 1/2 - 10 1/2
285/45R19* 111W 285 on 9 1/2 739 336 446 1090 @ 42 8 1/2 - 10 1/2
245/40R19 98Y 248 on 8 1/2 679 309 486 750 @ 42 8 - 9
255/40R19 100Y 260 on 9 687 313 480 800 @ 42 8 1/2 - 10
PASSENGER
275/40R19 105Y 278 on 9 1/2 703 320 469 925 @ 42 9 - 11
245/35R19 93Y 248 on 8 1/2 655 295 504 650 @ 42 8 - 9
255/35R19 96Y 260 on 9 661 300 499 710 @ 42 8 1/2 - 10
275/35R19 100Y 278 on 9 1/2 675 307 489 800 @ 42 9 - 10 1/2
275/30R19 96Y 278 on 9 1/2 649 295 508 710 @ 42 9 - 10
255/50R20* 109Y 265 on 8 764 347 432 1030 @ 42 7 - 9
265/50R20* 111W 277 on 8 1/2 774 352 426 1090 @ 42 7 1/2 - 9 1/2
275/45R20* 110Y 273 on 9 756 344 436 1060 @ 42 8 1/2 - 10 1/2
275/40R20* 106Y 278 on 9 1/2 728 331 453 950 @ 42 9 - 10 1/2
245/35R20 95Y 248 on 8 1/2 680 309 485 690 @ 42 8 - 9 1/2
255/35R20 97Y 260 on 9 686 312 481 730 @ 42 8 1/2 - 10
275/35R20 102Y 278 on 9 1/2 700 318 471 850 @ 42 9 - 10 1/2
315/35R20* 110Y 320 on 11 728 331 453 1060 @ 42 10 1/2 - 12 1/2
275/30R20 97Y 278 on 9 1/2 674 306 490 730 @ 42 9 - 10
295/35R21* 107Y 301 on 10 1/2 739 336 446 975 @ 42 10 - 11 1/2
295/30R22* 103Y 290 on 10.0 731 332 451 875 @ 42 10 - 11

* Alternative SUV fitment
