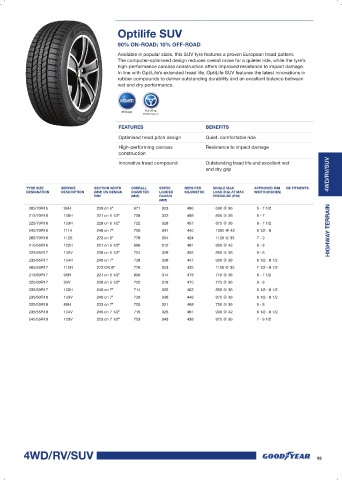

Page 63 - GDTNZ18_Product_Catalogue_2.1_Print_Ready_Neat

Optilife SUV

90% ON-ROAD; 10% OFF-ROAD

Available in popular sizes, this SUV tyre features a proven European tread pattern.
The computer-optimised design reduces overall noise for a quieter ride, while the tyre’s
high-performance carcass construction offers improved resistance to impact damage.
In line with OptiLife’s extended tread life, OptiLife SUV features the latest innovations in
rubber compounds to deliver outstanding durability and an excellent balance between
wet and dry performance.

0 1 3 0 9
5
6
1 2 4 1 0
Mileage Handling
Performance
FEATURES BENEFITS
Optimised tread pitch design Quiet, comfortable ride
High-performing carcass Resistance to impact damage
construction
4WD/RV/SUV
Innovative tread compound Outstanding tread life and excellent wet
and dry grip

TYRE SIZE SERVICE SECTION WIDTH OVERALL STATIC REVS PER SINGLE MAX APPROVED RIM OE FITMENTS
DESIGNATION DESCRIPTION (MM) ON DESIGN DIAMETER LOADED KILOMETRE LOAD (KG) AT MAX WIDTH (INCHES)
RIM (MM) RADIUS PRESSURE (PSI)
(MM)
HIGHWAY TERRAIN
205/70R15 96H 209 on 6" 671 303 496 690 @ 36 5 - 7 1/2
215/70R16 100H 221 on 6 1/2" 708 322 468 800 @ 36 5 - 7
225/70R16 103H 228 on 6 1/2" 722 328 457 875 @ 36 6 - 7 1/2
245/70R16 111H 248 on 7" 750 341 440 1090 @ 42 6 1/2 - 8
265/70R16 112S 272 on 8" 778 354 424 1120 @ 36 7 - 9
215/65R16 102H 221 on 6 1/2" 686 312 481 850 @ 42 6 - 8
225/65R17 102V 228 on 6 1/2" 724 329 455 850 @ 36 6 - 8
235/65R17 104H 240 on 7" 738 336 447 900 @ 36 6 1/2 - 8 1/2
265/65R17 112H 272 ON 8" 776 353 425 1120 @ 36 7 1/2 - 9 1/2
215/60R17 96H 221 on 6 1/2" 690 314 478 710 @ 36 6 - 7 1/2
225/60R17 99V 228 on 6 1/2" 702 319 470 775 @ 36 6 - 8
235/60R17 102H 240 on 7" 714 325 462 850 @ 36 6 1/2 - 8 1/2
235/60R18 103V 240 on 7" 739 336 446 875 @ 36 6 1/2 - 8 1/2
225/55R18 98H 233 on 7" 705 321 468 750 @ 36 6 - 8
235/55R18 104V 245 on 7 1/2" 715 325 461 900 @ 42 6 1/2 - 8 1/2
245/55R19 103V 253 on 7 1/2" 753 343 438 875 @ 36 7 - 8 1/2

4WD/RV/SUV 62
