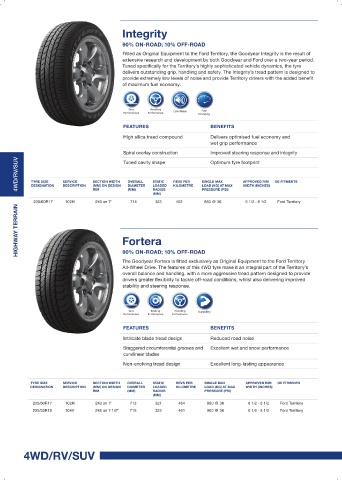

Page 66 - GDTNZ18_Product_Catalogue_2.1_Print_Ready_Neat

Integrity

90% ON-ROAD; 10% OFF-ROAD
Fitted as Original Equipment to the Ford Territory, the Goodyear Integrity is the result of
extensive research and development by both Goodyear and Ford over a two-year period.
Tuned specifically for the Territory’s highly sophisticated vehicle dynamics, the tyre
delivers outstanding grip, handling and safety. The Integrity’s tread pattern is designed to
provide extremely low levels of noise and provide Territory drivers with the added benefit
of maximum fuel economy.

Grip Handling Fuel
Performance Performance Low Noise Economy

FEATURES BENEFITS
High silica tread compound Delivers optimised fuel economy and
wet grip performance

Spiral overlay construction Improved steering response and integrity
4WD/RV/SUV TYRE SIZE SERVICE SECTION WIDTH OVERALL STATIC REVS PER SINGLE MAX APPROVED RIM OE FITMENTS
Tuned cavity shape
Optimum tyre footprint

DIAMETER
DESIGNATION
(MM) ON DESIGN
LOADED
DESCRIPTION
RADIUS
(MM)
RIM
PRESSURE (PSI)
(MM) KILOMETRE LOAD (KG) AT MAX WIDTH (INCHES)
235/60R17 102H 240 on 7" 714 325 462 850 @ 36 6 1/2 - 8 1/2 Ford Territory
HIGHWAY TERRAIN Fortera

90% ON-ROAD; 10% OFF-ROAD
The Goodyear Fortera is fitted exclusively as Original Equipment to the Ford Territory
All-Wheel Drive. The features of this 4WD tyre make it an integral part of the Territory’s
overall balance and handling, with a more aggressive tread pattern designed to provide
drivers greater flexibility to tackle off-road conditions, whilst also delivering improved
stability and steering response.

Grip Braking Handling Durability
Performance Performance Performance

FEATURES BENEFITS
Intricate blade tread design Reduced road noise
Staggered circumferential grooves and Excellent wet and snow performance
curvilinear blades
Non-evolving tread design Excellent long-lasting appearance

TYRE SIZE SERVICE SECTION WIDTH OVERALL STATIC REVS PER SINGLE MAX APPROVED RIM OE FITMENTS
DESIGNATION DESCRIPTION (MM) ON DESIGN DIAMETER LOADED KILOMETRE LOAD (KG) AT MAX WIDTH (INCHES)
RIM (MM) RADIUS PRESSURE (PSI)
(MM)
235/60R17 102H 243 on 7" 713 321 464 850 @ 36 6 1/2 - 8 1/2 Ford Territory
235/55R18 104V 245 on 7 1/2" 715 325 461 900 @ 36 6 1/2 - 8 1/2 Ford Territory

4WD/RV/SUV
