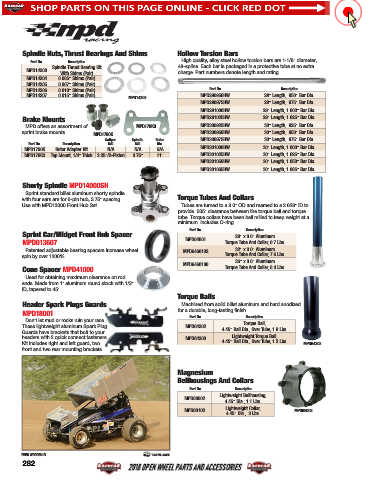

Page 283 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

Spindle Nuts, Thrust Bearings And Shims Hollow Torsion Bars
Part No. Description High quality, alloy steel hollow torsion bars are 1-1/8" diameter,
Spindle Thrust Bearing Kit 48-spline. Each bar is packaged in a protective tube at no extra
MPD14203
With Shims (Pair) charge. Part numbers denote length and rating.
MPD14204 0.005" Shims (Pair)
MPD14205 0.007" Shims (Pair)
MPD14206 0.010" Shims (Pair) Part No. Description
MPD14207 0.015" Shims (Pair) MPD290950HW 29" Length, .950" Bar Dia.
MPD14203
MPD290975HW 29" Length, .975" Bar Dia.
MPD291000HW 29" Length, 1.000" Bar Dia.
Brake Mounts MPD291025HW 29" Length, 1.025" Bar Dia.
MPD offers an assortment of MPD179K3 MPD300925HW 30" Length, .925" Bar Dia.
sprint brake mounts. MPD1790K MPD300950HW 30" Length, .950" Bar Dia.
Caliper Spindle Rotor MPD300975HW 30" Length, .975" Bar Dia.
Part No. Description B/C B/C Dia.
MPD301000HW 30" Length, 1.000" Bar Dia.
MPD1790K Rotor Adapter Kit N/A N/A N/A
MPD179K3 Top Mount, 1/4" Thick 3.25"/2-Piston 3.75" 11" MPD301025HW 30" Length, 1.025" Bar Dia.
MPD301050HW 30" Length, 1.050" Bar Dia.
MPD301065HW 30" Length, 1.065" Bar Dia.

Shorty Spindle MPD14000SH
Sprint standard billet aluminum shorty spindle
with four ears are for 6-pin hub, 3.75" spacing. Torque Tubes And Collars
Use with MPD13000 Front Hub Set. Tubes are turned to a 3.0" OD and reamed to a 2.628" ID to
provide .005" clearance between the torque ball and torque
tube. Torque collars have been ball milled to keep weight at a
minimum. Includes O-ring.
Part No. Description
Sprint Car/Midget Front Hub Spacer 28" x 3.0" Aluminum
MPD013607 MPD64601 Torque Tube And Collar, 6.7 Lbs.
Patented adjustable bearing spacers increase wheel MPD6460132 32" x 3.0" Aluminum
spin by over 1200%. Torque Tube And Collar, 7.6 Lbs.
36" x 3.0" Aluminum
MPD6460136
Cone Spacer MPD41000 Torque Tube And Collar, 8.3 Lbs.
Used for obtaining maximum clearance on rod
ends. Made from 1" aluminum round stock with 1/2"
ID, tapered to 45°.
Torque Balls
Header Spark Plugs Guards Machined from solid billet aluminum and hard anodized
for a durable, long-lasting finish.
MPD18001
Part No. Description
Don't let mud or rocks ruin your race.
Torque Ball,
These lightweight aluminum Spark Plug MPD64202 4.45" Ball Dia., Over Tube, 1.9 Lbs.
Guards have brackets that bolt to your
headers with 2 quick connect fasteners. MPD64203 Lightweight Torque Ball,
Kit includes right and left guard, two 4.45" Ball Dia., Over Tube, 1.2 Lbs. MPD64202
front and two rear mounting brackets.

Magnesium
Bellhousings And Collars
Part No. Description
Lightweight Bellhousing,
MPD68002
4.45" Dia., 1.1 Lbs.
Lightweight Collar,
MPD68102 MPD68002
4.45" Dia., .3 Lbs.

FRED WORDEN IV TOM WILLAVIZE
282
