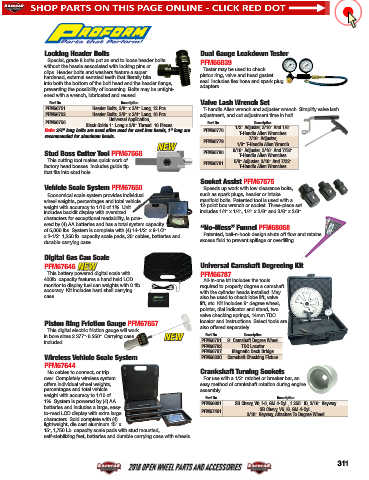

Page 312 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

Locking Header Bolts Dual Gauge Leakdown Tester
Special, grade 8 bolts put an end to loose header bolts PFM66839
without the hassle associated with locking pins or Tester may be used to check
clips. Header bolts and washers feature a super piston ring, valve and head gasket
hardened, external serrated teeth that literally bite seal. Includes flex hose and spark plug
into both the bottom of the bolt head and the header flange, adapters.
preventing the possibility of loosening. Bolts may be untight-
ened with a wrench, lubricated and reused.
Valve Lash Wrench Set
Part No. Description
PFM66751 Header Bolts, 3/8" x 3/4" Long, 12 Pcs. T-handle Allen wrench and adjuster wrench. Simplify valve lash
PFM66752 Header Bolts, 3/8" x 3/4" Long, 16 Pcs. adjustment, and cut adjustment time in half.
Universal Application,
PFM66756 Part No. Description
Black Oxide 1" Long x 3/8" Thread. 16 Pieces.
Note: 3/4" long bolts are most often used for cast iron heads, 1" long are PFM66778 1/2" Adjuster, 3/16" And 1/8"
recommended for aluminum heads. T-Handle Allen Wrenches
PFM66779 7/16" Adjuster,
1/8" T-Handle Allen Wrench
Stud Boss Cutter Tool PFM67568 PFM66780 9/16" Adjuster, 3/16" And 7/32"
T-Handle Allen Wrenches
This cutting tool makes quick work of 5/8" Adjuster, 3/16" And 7/32"
factory head bosses. Includes guide tip PFM66781 T-Handle Allen Wrenches
that fits into stud hole.
Socket Assist PFM67575
Vehicle Scale System PFM67650 Speeds up work with low clearance bolts,
Economical scale system provides individual such as spark plugs, header or intake
wheel weights, percentages and total vehicle manifold bolts. Patented tool is used with a
weight with accuracy to 1/10 of 1%. Unit 12-point box wrench or socket. Three-piece set
includes backlit display with oversized includes 1/4" x 1/4", 1/4" x 3/8" and 3/8" x 3/8".
characters for exceptional readability, is pow-
ered by (4) AA batteries and has a total system capacity “No-Mess” Funnel PFM68068
of 5,000 lbs. System is complete with (4) 14-1/2" x 9-1/2"
x 2-1/2" 1,250 lb. capacity scale pads, 20' cables, batteries and Patented, ball-n-hook design shuts off flow and retains
durable carrying case. excess fluid to prevent spillage or overfilling.

Digital Gas Can Scale
PFM67646 Universal Camshaft Degreeing Kit
This battery powered digital scale with PFM66787
400lb. capacity features a hand held LCD All-in-one kit includes the tools
monitor to display fuel can weights with 0.1lb. required to properly degree a camshaft
accuracy. Kit includes hard shell carrying with the cylinder heads installed. May
case. also be used to check lobe lift, valve
lift, etc. Kit includes 9" degree wheel,
pointer, dial indicator and stand, two
valve checking springs, 14mm TDC
Piston Ring Friction Gauge PFM67657 locator and instructions. Select tools are
also offered separately.
This digital electric friction gauge will work
in bore sizes 2.377"-6.250". Carrying case Part No. Description
included. PFM66791 9" Camshaft Degree Wheel
PFM66792 TDC Locator
PFM66797 Magnetic Deck Bridge
Wireless Vehicle Scale System PFM66830 Camshaft Checking Fixture
PFM67644
No cables to connect, or trip Crankshaft Turning Sockets
over. Completely wireless system For use with a 1/2" ratchet or breaker bar, an
offers individual wheel weights, easy method of crankshaft rotation during engine
percentages and total vehicle assembly.
weight with accuracy to 1/10 of Part No. Description
1%. System is powered by (4) AA PFM66901 SB Chevy, V6, I-6, GM 4-Cyl., 1.255" ID, 3/16" Keyway
batteries and includes a large, easy- SB Chevy, V6, I6, GM 4-Cyl.,
to-read LCD display with extra large PFM67491 3/16" Keyway, Attaches To Degree Wheel
characters. Sold complete with (4)
lightweight, die cast aluminum 15" x
15", 1,750 Lb. capacity scale pads with stud mounted,
self-stabilizing feet, batteries and durable carrying case with wheels.

311
