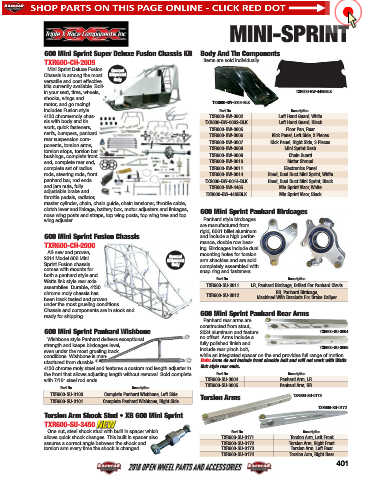

Page 402 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

MINI-SPRINT

600 Mini Sprint Super Deluxe Fusion Chassis Kit Body And Tin Components
TXR600-CH-2009 Items are sold individually.
Mini Sprint Deluxe Fusion Ground
Chassis is among the most Shipment
versatile and cost effective Only
kits currently available. Bolt-
in your seat, tires, wheels, TXR600-BW-4485BLK
shocks, wings and
motor, and go racing! TXR600-BW-0014-BLK
Includes Fusion style Part No. Description
4130 chromemoly chas- TXR600-BW-0002 Left Hand Guard, White
sis with body and tin TXR600-BW-0002-BLK Left Hand Guard, Black
work, quick fasteners,
TXR600-BW-0005 Floor Pan, Rear
nerfs, bumpers, panhard TXR600-BW-0006 Kick Panel, Left Side, 2 Pieces
rear suspension com-
ponents, torsion arms, TXR600-BW-0007 Kick Panel, Right Side, 3 Pieces
torsion stops, torsion bar TXR600-BW-0008 Mini Sprint Dash
bushings, complete front TXR600-BW-0009 Chain Guard
end, complete rear end, TXR600-BW-0010 Motor Shroud
complete set of radius TXR600-BW-0011 Electronics Panel
rods, steering rods, front TXR600-BW-0014 Hood, Dual Duct Mini Sprint, White
panhard bar, rod ends TXR600-BW-0014-BLK Hood, Dual Duct Mini Sprint, Black
and jam nuts, fully TXR600-BW-4485 Min Sprint Visor, White
adjustable brake and TXR600-BW-4485BLK Min Sprint Visor, Black
throttle pedals, radiator,
master cylinder, chain, chain guide, chain tensioner, throttle cable,
clutch lever and linkage, battery box, motor adjusters and linkages, 600 Mini Sprint Panhard Birdcages
nose wing posts and straps, top wing posts, top wing tree and top
wing adjuster. Panhard style birdcages
are manufactured from
rigid, 6061 billet aluminum
600 Mini Sprint Fusion Chassis and include a high perfor-
TXR600-CH-2000 mance, double row bear-
ing. Birdcages include dual
All-new and proven, mounting holes for torsion
2014 Model 600 Mini Ground
Shipment arm shackles and are sold
Sprint Fusion chassis Only completely assembled with
comes with mounts for snap ring and fasteners.
both a panhard style and
Watts link style rear axle Part No. Description
assemblies. Durable, 4130 TXR600-SU-3011 LR, Panhard Birdcage, Drilled For Panhard Clevis
chrome moly chassis has TXR600-SU-3012 RR, Panhard Birdcage,
been track tested and proven Machined With Brackets For Brake Caliper
under the most grueling conditions.
Chassis and components are in stock and 600 Mini Sprint Panhard Rear Arms
ready for shipping.
Panhard rear arms are
constructed from stout,
600 Mini Sprint Panhard Wishbone 2024 aluminum and feature TXR600-SU-3004
Wishbone style Panhard delivers exceptional no offset. Arms include a
strength and keeps birdcages level, fully polished fi nish and TXR600-SU-3005
even under the most grueling track include rear pinch bolt,
conditions. Wishbone is man- while an integrated spacer on the end provides full range of motion.
ufactured from durable Note: Arms do not include front shackle bolt and will not work with Watts
4130 chrome moly steel and features a custom rod length adjuster in link style rear ends.
the front that allows adjusting length without removal. Sold complete Part No. Description
with 7/16" steel rod ends. TXR600-SU-3004 Panhard Arm, LR
TXR600-SU-3005 Panhard Arm, RR
Part No. Description
TXR600-SU-3100 Complete Panhard Wishbone, Left Side Torsion Arms TXR600-SU-0173
TXR600-SU-3101 Complete Panhard Wishbone, Right Side
TXR600-SU-0172
Torsion Arm Shock Stud • XB 600 Mini Sprint
TXR600-SU-3450
One nut, steel shock stud with built in spacer which Part No. Description
allows quick shock changes. This built in spacer also TXR600-SU-0171 Torsion Arm, Left Front
assures a correct angle between the shock and TXR600-SU-0172 Torsion Arm, Right Front
torsion arm every time the shock is changed. TXR600-SU-0173 Torsion Arm, Left Rear
TXR600-SU-0174 Torsion Arm, Right Rear
