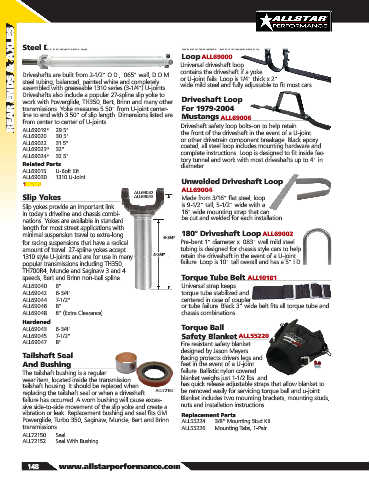

Page 150 - 2019 Allstar Performance Parts and Equipment Catalog

REAR ENDS & AXLES

Steel Driveshafts Universal Driveshaft
Loop ALL69000
Universal driveshaft loop
contains the driveshaft if a yoke
Driveshafts are built from 2-1/2" O.D., .065" wall, D.O.M.
steel tubing, balanced, painted white and completely or U-joint fails. Loop is 1/4" thick x 2"
assembled with greaseable 1310 series (3-1/4") U-joints. wide mild steel and fully adjustable to fit most cars.
Driveshafts also include a popular 27-spline slip yoke to
work with Powerglide, TH350, Bert, Brinn and many other Driveshaft Loop
transmissions. Yoke measures 5.50" from U-joint center- For 1979-2004
line to end with 3.50" of slip length. Dimensions listed are Mustangs ALL69006
from center to center of U-joints.
Driveshaft safety loop bolts-on to help retain
ALL69019* ... 29.5" the front of the driveshaft in the event of a U-joint
ALL69020 ..... 30.5" or other drivetrain component breakage. Black epoxy
ALL69022 ..... 31.5" coated, all steel loop includes mounting hardware and
ALL69023* ... 32"
ALL69024* ... 32.5" complete instructions. Loop is designed to fit inside fac-
tory tunnel and work with most driveshafts up to 4" in
Related Parts diameter.
ALL69015 ..... U-Bolt Kit
ALL69030 ..... 1310 U-Joint
*NEW! Unwelded Driveshaft Loop
ALL69004
ALL69042
Slip Yokes ALL69043 Made from 3/16" flat steel, loop
Slip yokes provide an important link is 9-1/2" tall, 5-1/2" wide with a
in today’s driveline and chassis combi- 16" wide mounting strap that can
nations. Yokes are available in standard be cut and welded for each installation.
length for most street applications with
minimal suspension travel to extra-long 180° Driveshaft Loop ALL69002
6-3/4"
for racing suspensions that have a radical Pre-bent 1" diameter x .083" wall mild steel
amount of travel. 27-spline yokes accept tubing is designed for chassis style cars to help
1310 style U-joints and are for use in many 4-3/4" retain the driveshaft in the event of a U-joint
popular transmissions including TH350, failure. Loop is 10" tall overall and has a 5" I.D.
TH700R4, Muncie and Saginaw 3 and 4
speeds, Bert and Brinn non-ball spline. Torque Tube Belt ALL10181
ALL69040 ..... 6" Universal strap keeps
ALL69042 ..... 6-3/4" torque tube stabilized and
ALL69044 ..... 7-1/2" centered in case of coupler
ALL69046 ..... 8" or tube failure. Black 3" wide belt fits all torque tube and
ALL69048 ..... 8" (Extra Clearance) chassis combinations.
Hardened
ALL69043 ..... 6-3/4" Torque Ball
ALL69045 ..... 7-1/2" Safety Blanket ALL55220
ALL69047 ..... 8" Fire resistant safety blanket
designed by Jason Meyers
Tailshaft Seal Racing protects drivers legs and
And Bushing feet in the event of a U-joint
The tailshaft bushing is a regular failure. Ballistic nylon covered
wear item, located inside the transmission blanket weighs just 1-1/2 lbs. and
tailshaft housing. It should be replaced when has quick release adjustable straps that allow blanket to
replacing the tailshaft seal or when a driveshaft ALL72152 be removed easily for servicing torque ball and u-joint.
failure has occurred. A worn bushing will cause exces- Blanket includes two mounting brackets, mounting studs,
sive side-to-side movement of the slip yoke and create a nuts and installation instructions.
vibration or leak. Replacement bushing and seal fits GM Replacement Parts
Powerglide, Turbo 350, Saginaw, Muncie, Bert and Brinn ALL55224 ..... 3/8" Mounting Stud Kit
transmissions. ALL55226 ..... Mounting Tabs, 1-Pair
ALL72150 ..... Seal
ALL72152 ..... Seal With Bushing
