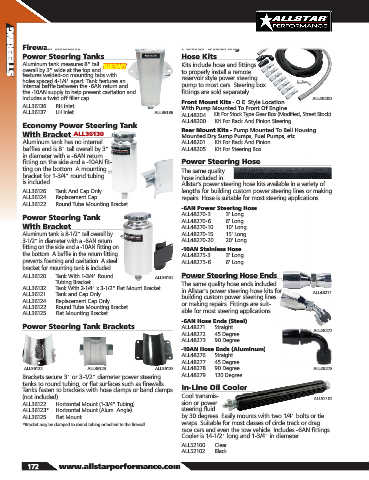

Page 174 - 2019 Allstar Performance Parts and Equipment Catalog

STEERING Firewall Mount Power Steering

Hose Kits
Power Steering Tanks
Aluminum tank measures 8" tall
NEW!
Kits include hose and fittings
overall by 3" wide at the top and
features welded-on mounting tabs with
reservoir style power steering
holes spaced 4-1/4" apart. Tank features an to properly install a remote
internal baffle between the -6AN return and pump to most cars. Steering box
the -10AN supply to help prevent cavitation and fittings are sold separately.
includes a twist off filler cap. ALL48200
Front Mount Kits - O.E. Style Location
ALL36136 ..... RH Inlet With Pump Mounted To Front Of Engine
ALL36137 ..... LH Inlet ALL36136
ALL48204 ..... Kit For Stock Type Gear Box (Modified, Street Stock)
ALL48200 ..... Kit For Rack And Pinion Steering
Economy Power Steering Tank
Rear Mount Kits - Pump Mounted To Bell Housing
With Bracket ALL36130 Mounted Dry Sump Pumps, Fuel Pumps, etc.
Aluminum tank has no internal ALL48201 ..... Kit For Rack And Pinion
baffles and is 8" tall overall by 3" ALL48205 ..... Kit For Steering Box
in diameter with a -6AN return
fitting on the side and a -10AN fit- Power Steering Hose
ting on the bottom. A mounting The same quality
bracket for 1-3/4" round tubing hose included in
is included. Allstar’s power steering hose kits available in a variety of
ALL36126 ..... Tank And Cap Only lengths for building custom power steering lines or making
ALL36124 ..... Replacement Cap repairs. Hose is suitable for most steering applications.
ALL36122 ..... Round Tube Mounting Bracket
-6AN Power Steering Hose
ALL48270-3 ......... 3' Long
Power Steering Tank
ALL48270-6 ........ 6' Long
With Bracket ALL48270-10 ....... 10' Long
Aluminum tank is 8-1/2" tall overall by ALL48270-15 ....... 15' Long
3-1/2" in diameter with a -6AN return ALL48270-20 ....... 20' Long
fitting on the side and a -10AN fitting on -10AN Stainless Hose
the bottom. A baffle in the return fitting ALL48275-3 ......... 3' Long
prevents foaming and cavitation. A steel ALL48275-6 ........ 6' Long
bracket for mounting tank is included.
ALL36120 ..... Tank With 1-3/4" Round ALL36132 Power Steering Hose Ends
Tubing Bracket The same quality hose ends included
ALL36132 ..... Tank With 2-1/4" x 3-1/2" Flat Mount Bracket in Allstar’s power steering hose kits for
ALL36121 ..... Tank and Cap Only building custom power steering lines ALL48271
ALL36124 ..... Replacement Cap Only or making repairs. Fittings are suit-
ALL36122 ..... Round Tube Mounting Bracket
ALL36125 ..... Flat Mounting Bracket able for most steering applications.
-6AN Hose Ends (Steel)
Power Steering Tank Brackets ALL48271 ..... Straight
ALL48272
ALL48272 ..... 45 Degree
ALL48273 ..... 90 Degree
-10AN Hose Ends (Aluminum)
ALL48276 ..... Straight
ALL48277 ..... 45 Degree
ALL36122 ALL36123 ALL36125 ALL48278 ..... 90 Degree ALL48278
Brackets secure 3" or 3-1/2" diameter power steering ALL48279 ..... 120 Degree
tanks to round tubing, or flat surfaces such as firewalls.
Tanks fasten to brackets with hose clamps or band clamps In-Line Oil Cooler
(not included). Cool transmis- ALL52102
ALL36122 ..... Horizontal Mount (1-3/4" Tubing) sion or power
ALL36123* ... Horizontal Mount (Alum. Angle) steering fluid
ALL36125 ..... Flat Mount by 30 degrees. Easily mounts with two 1/4" bolts or tie
*Bracket may be clamped to round tubing or bolted to the firewall. wraps. Suitable for most classes of circle track or drag
race cars and even the tow vehicle. Includes -6AN fittings.
Cooler is 14-1/2" long and 1-3/4" in diameter.
ALL52100 ..... Clear
ALL52102 ..... Black
172 www.allstarperformance.com
