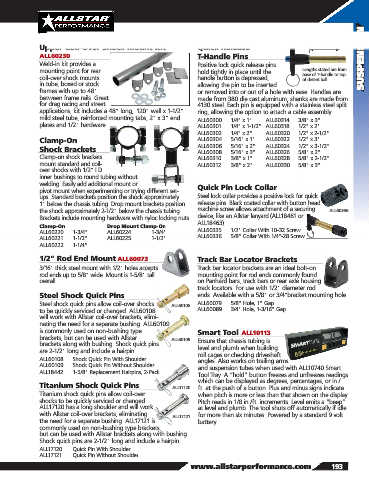

Page 195 - 2019 Allstar Performance Parts and Equipment Catalog

Upper Coil-Over Shock Mount Kit Quick Release
ALL60230 T-Handle Pins SUSPENSION
Weld-in kit provides a Positive lock quick release pins
mounting point for rear hold tightly in place until the Lengths stated are from
base of T-handle to top
coil-over shock mounts handle button is depressed, of detent ball.
in tube, boxed or stock allowing the pin to be inserted
frames with up to 48" or removed into or out of a hole with ease. Handles are
between frame rails. Great made from 380 die cast aluminum, shanks are made from
for drag racing and street 4130 steel. Each pin is equipped with a stainless steel split
applications, kit includes a 48" long, .120" wall x 1-1/2" ring, allowing the option to attach a cable assembly.
mild steel tube, reinforced mounting tabs, 2" x 3" end ALL60300 ..... 1/4" x 1" ALL60314 ..... 3/8" x 3"
plates and 1/2" hardware. ALL60301 ..... 1/4" x 1-1/2" ALL60318 ..... 1/2" x 2"
ALL60302 ..... 1/4" x 2" ALL60320 ..... 1/2" x 2-1/2"
Clamp-On ALL60304 ..... 5/16" x 1" ALL60322..... 1/2" x 3"
ALL60306 ..... 5/16" x 2" ALL60324 ..... 1/2" x 3-1/2"
Shock Brackets
ALL60308 ..... 5/16" x 3" ALL60326 ..... 5/8" x 2"
Clamp-on shock brackets ALL60310 ..... 3/8" x 1" ALL60328 ..... 5/8" x 2-1/2"
mount standard and coil- ALL60312 ..... 3/8" x 2" ALL60330 .... 5/8" x 3"
over shocks with 1/2" I.D.
inner bushings to round tubing without
welding. Easily add additional mount or Quick Pin Lock Collar
pivot mount when experimenting or trying different set-
ups. Standard brackets position the shock approximately Steel lock collar provides a positive lock for quick
1" below the chassis tubing. Drop mount brackets position release pins. Black coated collar with button head
the shock approximately 2-1/2" below the chassis tubing. machine screw allows attachment of a securing ALL60335
Brackets include mounting hardware with nyloc locking nuts. device, like an Allstar lanyard (ALL18461 or
ALL18463).
Clamp-On Drop Mount Clamp-On
ALL60220 ..... 1-3/4" ALL60224 ............ 1-3/4" ALL60335 ..... 1/2" Collar With 10-32 Screw
ALL60221 ..... 1-1/2" ALL60225 ............ 1-1/2" ALL60336 ..... 5/8" Collar With 1/4"-28 Screw
ALL60222 ..... 1-1/4"
1/2" Rod End Mount ALL60073 Track Bar Locator Brackets
3/16" thick steel mount with 1/2" holes accepts Track bar locator brackets are an ideal bolt-on
rod ends up to 5/8" wide. Mount is 1-5/8" tall mounting point for rod ends commonly found
overall. on Panhard bars, track bars or rear axle housing
track locators. For use with 1/2" diameter rod
Steel Shock Quick Pins ends. Available with a 5/8" or 3/4"bracket mounting hole.
Steel shock quick pins allow coil-over shocks ALL60108 ALL60079 ..... 5/8" Hole, 1" Gap
to be quickly serviced or changed. ALL60108 ALL60089..... 3/4" Hole, 1-3/16" Gap
will work with Allstar coil-over brackets, elimi-
nating the need for a separate bushing. ALL60109
is commonly used on non-bushing type Smart Tool ALL10113
brackets, but can be used with Allstar ALL60109 Ensure that chassis tubing is
brackets along with bushing. Shock quick pins level and plumb when building
are 2-1/2" long and include a hairpin.
roll cages or checking driveshaft
ALL60108 ..... Shock Quick Pin With Shoulder angles. Also works on trailing arms
ALL60109 ..... Shock Quick Pin Without Shoulder and suspension tubes when used with ALL10740 Smart
ALL18442 ..... 1-5/8" Replacement Hairpins, 2-Pack
Tool Tray. A “hold” button freezes and unfreezes readings
which can be displayed as degrees, percentages, or in./
Titanium Shock Quick Pins ALL17120 ft. at the push of a button. Plus and minus signs indicate
Titanium shock quick pins allow coil-over when pitch is more or less than that shown on the display.
shocks to be quickly serviced or changed. Pitch reads in 1/8 in./ft. increments. Level emits a “beep”
ALL17120 has a long shoulder and will work at level and plumb. The tool shuts off automatically if idle
with Allstar coil-over brackets, eliminating ALL17121 for more than six minutes. Powered by a standard 9 volt
the need for a separate bushing. ALL17121 is battery.
commonly used on non-bushing type brackets,
but can be used with Allstar brackets along with bushing.
Shock quick pins are 2-1/2" long and include a hairpin.
ALL17120 ...... Quick Pin With Shoulder
ALL17121 ...... Quick Pin Without Shoulder
www.allstarperformance.com 193
