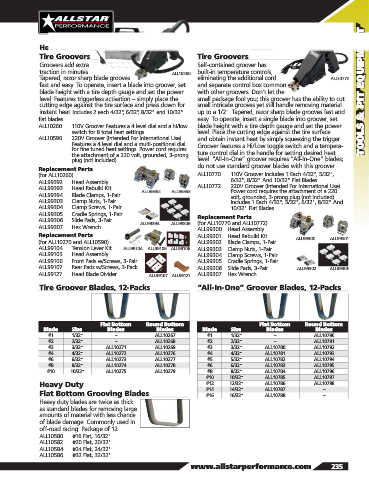

Page 237 - 2019 Allstar Performance Parts and Equipment Catalog

Heated “All-In-One” Heated
Tire Groovers Tire Groovers
Groovers add extra Self-contained groover has
traction in minutes. ALL10260 built-in temperature controls,
Tapered, razor sharp blade grooves eliminating the additional cord ALL10770
fast and easy. To operate, insert a blade into groover, set and separate control box common
blade height with a tire depth gauge and set the power with other groovers. Don’t let the TOOLS & PIT EQUIPMENT
level. Features triggerless activation – simply place the small package fool you; this groover has the ability to cut
cutting edge against the tire surface and press down for small intricate grooves yet still handle removing material
instant heat. Includes 2 each 4/32", 6/32", 8/32" and 10/32" up to a 1/2". Tapered, razor sharp blade grooves fast and
flat blades. easy. To operate, insert a single blade into groover, set
ALL10260 ..... 110V Groover Features a 4 level dial and a hi/low blade height with a tire depth gauge and set the power
switch for 8 total heat settings. level. Place the cutting edge against the tire surface
ALL10590 ..... 220V Groover (Intended For International Use) and obtain instant heat by simply squeezing the trigger.
Features a 4 level dial and a multi-positional dial Groover features a Hi/Low toggle switch and a tempera-
for fine tuned heat settings. Power cord requires ture control dial in the handle for setting desired heat
the attachment of a 220 volt, grounded, 3-prong
plug (not included). level. “All-In-One” groover requires “All-In-One” blades;
do not use standard groover blades with this groover.
Replacement Parts
(for ALL10260) ALL10770 ..... 110V Groover Includes 1 Each 4/32", 5/32",
ALL99392 ..... Head Assembly 6/32", 8/32" And 10/32" Flat Blades.
ALL99393 ..... Head Rebuild Kit ALL10772 ..... 220V Groover (Intended For International Use)
Power cord requires the attachment of a 220
ALL99394 ..... Blade Clamps, 1-Pair ALL99392 ALL99393 volt, grounded, 3-prong plug (not included).
ALL99303 ..... Clamp Nuts, 1-Pair Includes 1 Each 4/32", 5/32", 6/32", 8/32" And
ALL99304 ..... Clamp Screws, 1-Pair 10/32" Flat Blades.
ALL99305 ..... Cradle Springs, 1-Pair Replacement Parts
ALL99306 ..... Slide Pads, 3-Pair
ALL99394 ALL99306 (for ALL10770 and ALL10772)
ALL99307 ..... Hex Wrench
ALL99300 ... Head Assembly
Replacement Parts ALL99301 ... Head Rebuild Kit
(for ALL10270 and ALL10590) ALL99302 ... Blade Clamps, 1-Pair ALL99300 ALL99301
ALL99104 ..... Tension Lever Kit ALL99104 ALL99105 ALL99106 ALL99303 ... Clamp Nuts, 1-Pair
ALL99105 ..... Head Assembly ALL99304 ... Clamp Screws, 1-Pair
ALL99106 ..... Front Pads w/Screws, 3-Pair ALL99305 ... Cradle Springs, 1-Pair
ALL99107 ..... Rear Pads w/Screws, 3-Pack ALL99306 ... Slide Pads, 3-Pair
ALL99302 ALL99306
ALL99127 ..... Head Blade Divider ALL99107 ALL99127 ALL99307 ... Hex Wrench
Tire Groover Blades, 12-Packs “All-In-One” Groover Blades, 12-Packs

Flat Bottom Round Bottom Flat Bottom Round Bottom
Blade Size Blades Blades Blade Size Blades Blades
#1 1/32" – ALL10267 #1 1/32" – ALL10790
#2 2/32" – ALL10268 #2 2/32" – ALL10791
#3 3/32" ALL10271 ALL10269 #3 3/32" ALL10780 ALL10792
#4 4/32" ALL10272 ALL10276 #4 4/32" ALL10781 ALL10793
#6 6/32" ALL10273 ALL10277 #5 5/32" ALL10782 ALL10794
#8 8/32" ALL10274 ALL10278 #6 6/32" ALL10783 ALL10795
#10 10/32" ALL10275 ALL10279 #8 8/32" ALL10784 ALL10796
#10 10/32" ALL10785 ALL10797
Heavy Duty #12 12/32" ALL10786 ALL10798
#14 14/32" ALL10787 –
Flat Bottom Grooving Blades #16 16/32" ALL10788 –
Heavy duty blades are twice as thick
as standard blades for removing large
amounts of material with less chance
of blade damage. Commonly used in
off-road racing. Package of 12.
ALL10580 ..... #16 Flat, 16/32"
ALL10582 ..... #20 Flat, 20/32"
ALL10584 ..... #24 Flat, 24/32"
ALL10586 ..... #32 Flat, 32/32"
www.allstarperformance.com 235
