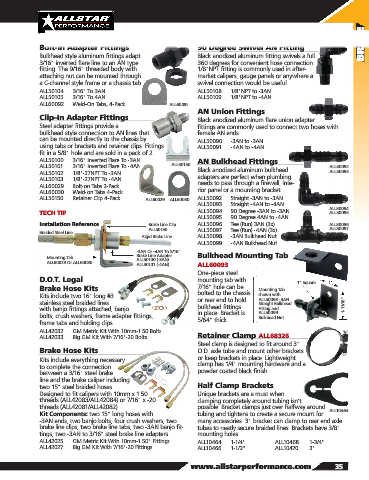

Page 37 - 2019 Allstar Performance Parts and Equipment Catalog

BRAKE

Bolt-In Adapter Fittings 90 Degree Swivel AN Fitting
Bulkhead style aluminum fittings adapt Black anodized aluminum fitting swivels a full
3/16" inverted flare line to an AN type 360 degrees for convenient hose connection.
fitting. The 9/16" threaded body with 1/8"NPT fitting is commonly used in after-
attaching nut can be mounted through market calipers, gauge panels or anywhere a
a C-channel style frame or a chassis tab. swivel connection would be useful.
ALL50104 ..... 3/16" To 3AN ALL50108 ..... 1/8"NPT to -3AN
ALL50105 ..... 3/16" To 4AN ALL50109 ..... 1/8"NPT to -4AN
ALL60092 ..... Weld-On Tabs, 4-Pack ALL60092
AN Union Fittings
Clip-In Adapter Fittings Black anodized aluminum flare union adapter
Steel adapter fittings provide a fittings are commonly used to connect two hoses with
bulkhead style connection to AN lines that female AN ends.
can be mounted directly to the chassis by ALL50090 .... -3AN to -3AN
using tabs or brackets and retainer clips. Fittings ALL50091 ..... -4AN to -4AN
fit in a 5/8" hole and are sold in a pack of 2.
ALL50100 ..... 3/16" Inverted Flare To -3AN AN Bulkhead Fittings
ALL50150
ALL50101 ..... 3/16" Inverted Flare To -4AN Black anodized aluminum bulkhead ALL50092
ALL50093
ALL50102 ..... 1/8"-27NPT To -3AN adapters are perfect when plumbing
ALL50103 ..... 1/8"-27NPT To -4AN
ALL60029 ..... Bolt-on Tabs 2-Pack needs to pass through a firewall, inte-
ALL60030 ..... Weld-on Tabs 4-Pack rior panel or a mounting bracket.
ALL50150 ..... Retainer Clip 4-Pack ALL60029 ALL60030 ALL50092 ..... Straight -3AN to -3AN
ALL50093 ..... Straight -4AN to -4AN
ALL50094
TECH TIP ALL50094..... 90 Degree -3AN to -3AN ALL50095
ALL50095 ..... 90 Degree 4AN to -4AN
Installation Reference Brake Line Clip ALL50096..... Tee (Run) 3AN (3x) ALL50096
ALL50150 ALL50097 ..... Tee (Run) -4AN (3x) ALL50097
Braided Steel Line
Rigid Brake Line ALL50098..... -3AN Bulkhead Nut
ALL50099 ..... -4AN Bulkhead Nut
-3AN Or -4AN To 3/16"
Brake Line Adapter Bulkhead Mounting Tab
Mounting Tab ALL50100 (-3AN)
ALL60029 Or ALL60030
ALL50101 (-4AN) ALL60093
One-piece steel
D.O.T. Legal mounting tab with 1" Square 1"
Brake Hose Kits 7/16" hole can be Mounting Tab
Kits include two 16" long #3 bolted to the chassis shown with
ALL50093 -4AN
stainless steel braided lines or rear end to hold Straight Bulkhead 1-11/16"
with banjo fittings attached, banjo bulkhead fittings Fitting and
ALL50099
bolts, crush washers, frame adapter fittings, in place. Bracket is Bulkhead Nut.
frame tabs and holding clips. 5/64" thick.
ALL42032 ..... GM Metric Kit With 10mm-1.50 Bolts
ALL42033 ..... Big GM Kit With 7/16"-20 Bolts Retainer Clamp ALL68326
Steel clamp is designed to fit around 3"
Brake Hose Kits O.D. axle tube and mount other brackets
Kits include everything necessary or keep brackets in place. Lightweight
to complete the connection clamp has 1/4" mounting hardware and a
between a 3/16" steel brake powder coated black finish.
line and the brake caliper including
two 15" steel braided hoses. Half Clamp Brackets
Designed to fit calipers with 10mm x 1.50 Unique brackets are a must when
threads (ALL42083/ALL42084) or 7/16" x -20 clamping completely around tubing isn’t
threads (ALL42081/ALL42082). possible. Bracket clamps just over halfway around
Kit Components: two 15" long hoses with tubing and tightens to create a secure mount for ALL10464
-3AN ends, two banjo bolts, four crush washers, two many accessories. 3" bracket can clamp to rear end axle
brake line clips, two brake line tabs, two -3AN banjo fit- tubes to neatly secure braided lines. Brackets have 3/8"
tings, two -3AN to 3/16" steel brake line adapters. mounting holes.
ALL42025 ..... GM Metric Kit With 10mm-1.50" Fittings ALL10464 ..... 1-1/4" ALL10468 ...... 1-3/4"
ALL42027 ..... Big GM Kit With 7/16"-20 Fittings ALL10466 ..... 1-1/2" ALL10470 ...... 3"

www.allstarperformance.com 35
