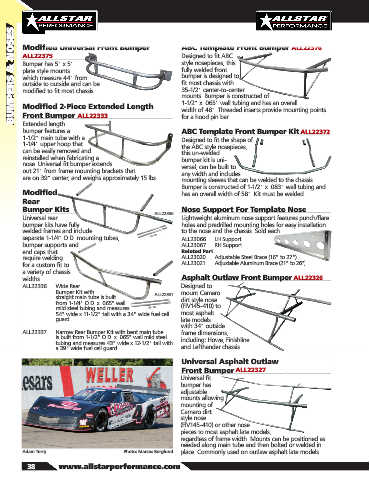

P. 40
BUMPERS & NOSES Modified Universal Front Bumper ABC Template Front Bumper ALL22376
Designed to fit ABC
ALL22375
style nosepieces, this
Bumper has 5" x 5"
fully welded front
plate style mounts
bumper is designed to
which measure 44" from
fit most chassis with
outside to outside and can be
35-1/2" center-to-center
modified to fit most chassis.
mounts. Bumper is constructed of
Modified 2-Piece Extended Length
width of 48". Threaded inserts provide mounting points
Front Bumper ALL22333
for a hood pin bar.
Extended length
bumper features a 1-1/2" x .065" wall tubing and has an overall
ABC Template Front Bumper Kit ALL22372
1-1/2" main tube with a Designed to fit the shape of
1-1/4" upper hoop that the ABC style nosepieces,
can be easily removed and this un-welded
reinstalled when fabricating a bumper kit is uni-
nose. Universal fit bumper extends versal, can be built to
out 21" from frame mounting brackets that any width and includes
are on 39" center, and weighs approximately 15 lbs.
mounting sleeves that can be welded to the chassis.
Bumper is constructed of 1-1/2" x .083" wall tubing and
Modified has an overall width of 58". Kit must be welded.
Rear
Bumper Kits Nose Support For Template Nose
ALL22336
Universal rear Lightweight aluminum nose support features punch/flare
bumper kits have fully holes and predrilled mounting holes for easy installation
welded frames and include to the nose and the chassis. Sold each.
separate 1-1/4" O.D. mounting tubes, ALL23066 ..... LH Support
bumper supports and ALL23067 ..... RH Support
end caps that Related Part
require welding ALL23020 ..... Adjustable Steel Brace (16" to 27")
for a custom fit to ALL23021 ..... Adjustable Aluminum Brace (21" to 26")
a variety of chassis
widths. Asphalt Outlaw Front Bumper ALL22326
ALL22336 ..... Wide Rear Designed to
Bumper Kit with ALL22337 mount Camaro
straight main tube is built dirt style nose
from 1-1/4" O.D. x .065" wall (FIV145-410) to
mild steel tubing and measures
54" wide x 11-1/2" tall with a 34" wide fuel cell most asphalt
guard. late models
with 34" outside
ALL22337 ..... Narrow Rear Bumper Kit with bent main tube frame dimensions,
is built from 1-1/2" O.D. x .065" wall mild steel including: Howe, Finishline
tubing and measures 43" wide x 12-1/2" tall with and Lefthander chassis.
a 39" wide fuel cell guard.
Universal Asphalt Outlaw
Front Bumper ALL22327
Universal fit
bumper has
adjustable
mounts allowing
mounting of
Camaro dirt
style nose
(FIV145-410) or other nose
pieces to most asphalt late models,
regardless of frame width. Mounts can be positioned as
needed along main tube and then bolted or welded in
Adam Terry Photo: Marcus Berglund place. Commonly used on outlaw asphalt late models.
38 www.allstarperformance.com
