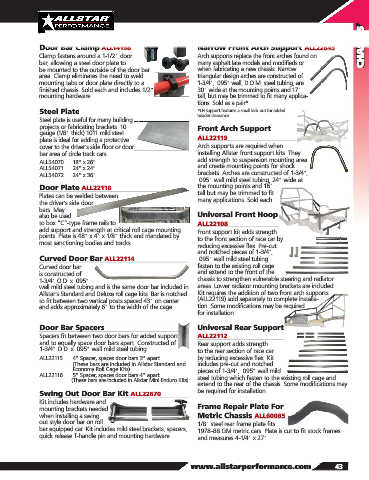

Page 45 - 2019 Allstar Performance Parts and Equipment Catalog

CHASSIS

Door Bar Clamp ALL14198 Narrow Front Arch Support ALL22645
Clamp fastens around a 1-1/2" door Arch supports replace the front arches found on
bar, allowing a steel door plate to many asphalt late models and modifieds or
be mounted to the outside of the door bar when fabricating a new chassis. Narrow
area. Clamp eliminates the need to weld triangular design arches are constructed of
mounting tabs or door plate directly to a 1-3/4", .095" wall, D.O.M. steel tubing, are
finished chassis. Sold each and includes 1/2" 30" wide at the mounting points and 17"
mounting hardware. tall, but may be trimmed to fit many applica-
tions. Sold as a pair*
Steel Plate *LH support features a small kick out for added
header clearance.
Steel plate is useful for many building
projects or fabricating brackets. 10 Front Arch Support
gauge (1/8" thick) 1011 mild steel
plate is ideal for adding a protective ALL22119
cover to the driver’s side floor or door Arch supports are required when
bar area of circle track cars. installing Allstar front support kits. They
add strength to suspension mounting area
ALL54070 ..... 18" x 26"
ALL54071 ..... 24" x 24" and create mounting points for shock
ALL54072 ..... 24" x 36" brackets. Arches are constructed of 1-3/4",
.095" wall mild steel tubing, 24" wide at
Door Plate ALL22118 the mounting points and 16"
tall but may be trimmed to fit
Plates can be welded between
the driver’s side door many applications. Sold each.
bars. May
also be used Universal Front Hoop
to box “C”-type frame rails to ALL22108
add support and strength at critical roll cage mounting Front support kit adds strength
points. Plate is 48" x 4" x 1/8" thick and mandated by to the front section of race car by
most sanctioning bodies and tracks. reducing excessive flex. Pre-cut
and notched pieces of 1-3/4",
Curved Door Bar ALL22114 .095" wall mild steel tubing
Curved door bar fasten to the existing roll cage
is constructed of and extend to the front of the
1-3/4" O.D. x .095" chassis to strengthen vulnerable steering and radiator
wall mild steel tubing and is the same door bar included in areas. Lower radiator mounting brackets are included.
Allstar’s Standard and Deluxe roll cage kits. Bar is notched Kit requires the addition of two front arch supports
to fit between two vertical posts spaced 43" on center (ALL22119) sold separately to complete installa-
and adds approximately 6" to the width of the cage. tion. Some modifications may be required
for installation.

Door Bar Spacers Universal Rear Support
Spacers fit between two door bars for added support ALL22112
and to equally space door bars apart. Constructed of Rear support adds strength
1-3/4" O.D. x .095" wall mild steel tubing. to the rear section of race car
ALL22115 ..... 4" Spacer, spaces door bars 3" apart. by reducing excessive flex. Kit
(These bars are included in Allstar Standard and includes pre-cut and notched
Economy Roll Cage Kits) pieces of 1-3/4", .095" wall mild
ALL22116 ..... 5" Spacer, spaces door bars 4" apart.
(These bars are included in Allstar Mini Enduro Kits) steel tubing which fasten to the existing roll cage and
extend to the rear of the chassis. Some modifications may
be required for installation.
Swing Out Door Bar Kit ALL22670
Kit includes hardware and
mounting brackets needed Frame Repair Plate For
when installing a swing Metric Chassis ALL60085
out style door bar on roll 1/8" steel rear frame plate fits
bar equipped car. Kit includes mild steel brackets, spacers, 1978-88 GM metric cars. Plate is cut to fit stock frames
quick release T-handle pin and mounting hardware. and measures 4-1/4" x 27".
