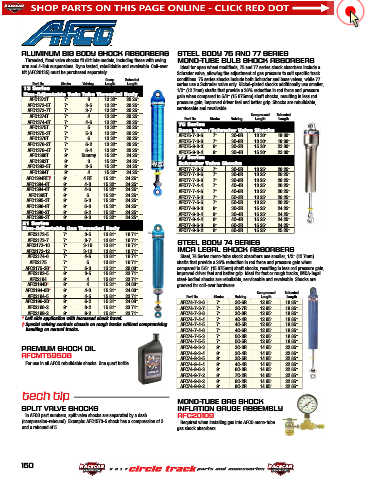

Page 151 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

ALUMINUM BIG BODY SHOCK ABSORBERS STEEL BODY 75 AND 77 SERIES
Threaded, fixed valve shocks fit dirt late models, including those with swing MONO-TUBE BULB SHOCK ABSORBERS
arm and 4-link suspensions. Dyno tested, rebuildable and revalvable. Coil-over Ideal for open wheel modifieds, 75 and 77 series shock absorbers include a
kit (AFC20135) must be purchased separately. Schrader valve, allowing the adjustment of gas pressure to suit specific track
Comp. Extended conditions. 75 series shocks include both Schrader and base valves, while 77
Part No. Stroke Valving Length Length series use a Schrader valve only. Nickel-plated shocks additionally use smaller,
13 Series 1/2" (12.7mm) shafts that provide a 36% reduction in rod force and pressure
Non-Adjustable Twin Tube Threaded Body gain when compared to 5/8" (15.875mm) shaft shocks, resulting in less rod
AFC1373T 7" 3 13.32" 20.25" pressure gain, improved driver feel and better grip. Shocks are rebuildable,
AFC1373-5T 7" 3-5 13.32" 20.25"
AFC1373-7T 7" 3-7 13.32" 20.25" serviceable and revalvable.
AFC1374T 7" 4 13.32" 20.25" Compressed Extended
Part No.
AFC1374-6T 7" 4-6 13.32" 20.25" 75 Series Stroke Valving Length Length
AFC1375T 7" 5 13.32" 20.25" Base Valve/Schrader Valve Shocks
AFC1375-3T 7" 5-3 13.32" 20.25" AFC75-7-3-6 7" 3C-6R 13.30" 19.30"
AFC1376T 7" 6 13.32" 20.25" AFC75-7-3-8 7" 3C-8R 13.30" 19.30"
AFC1376-2T 7" 6-2 13.32" 20.25" AFC75-9-3-3 9" 3C-3R 15.30" 23.30"
AFC1376-4T 7" 6-4 13.32" 20.25" AFC75-9-3-4 9" 3C-4R 15.30" 23.30"
AFC1390T 9" Dummy 15.32" 24.25" 77 Series
AFC1393T 9" 3 15.32" 24.25" Schrader Valve Shocks
AFC1393-5T 9" 3-5 15.32" 24.25" AFC77-7-3-5 7" 3C-5R 13.25" 20.25"
AFC1394T 9" 4 15.32" 24.25" AFC77-7-3-6 7" 3C-6R 13.25" 20.25"
AFC1394RTT † 9" 4 RT 15.32" 24.25" AFC77-7-3-8 7" 3C-8R 13.25" 20.25"
AFC1394-0T 9" 4-0 15.32" 24.25" AFC77-7-4-4 7" 4C-4R 13.25" 20.25"
AFC1394-6T 9" 4-6 15.32" 24.25" AFC77-7-4-6 7" 4C-6R 13.25" 20.25"
AFC1395T 9" 5 15.32" 24.25" AFC77-7-5-3 7" 5C-3R 13.25" 20.25"
AFC1395-3T 9" 5-3 15.32" 24.25" AFC77-7-5-5 7" 5C-5R 13.25" 20.25"
AFC1396-0T 9" 6-0 15.32" 24.25" AFC77-9-3-3 9" 3C-3R 15.25" 24.25"
AFC1396-2T 9" 6-2 15.32" 24.25" AFC77-9-3-4 9" 3C-4R 15.25" 24.25"
AFC1399-3T 9" 9-3 15.32" 24.25" AFC77-9-4-4 9" 4C-4R 15.25" 24.25"
21 Series AFC77-9-6-3 9" 6C-3R 15.25" 24.25"
Non-Adjustable Gas Threaded Body AFC77-9-8-2 9" 8C-2R 15.25" 25.25"
AFC2173-5 7" 3-5 13.81" 19.71"
AFC2173-7 7" 3-7 13.81" 19.71"
AFC2173-10 7" 3-10 13.81" 19.71" STEEL BODY 74 SERIES
AFC2173-12 7" 3-12 13.81" 19.71" IMCA LEGAL SHOCK ABSORBERS
AFC2174-6 7" 4-6 13.81" 19.71" Steel, 74 Series mono-tube shock absorbers use smaller, 1/2" (12.7mm)
AFC2175 7" 5 13.81" 19.71" shafts that provide a 36% reduction in rod force and pressure gain when
AFC2175-3D* 7" 5-3 13.31" 20.03" compared to 5/8" (15.875mm) shaft shocks, resulting in less rod pressure gain,
AFC2193-5 9" 3-5 15.81" 23.71" improved driver feel and better grip. Ideal for fast or rough tracks, IMCA-legal
AFC2194 9" 4 15.81" 23.71" steel-bodied shocks are rebuilable, serviceable and revalvable. Shocks are
AFC2194D* 9" 4 15.31" 24.03" grooved for coil-over hardware.
AFC2194-0D* 9" 4-0 15.31" 24.03" Compressed Extended
AFC2194-5 9" 4-5 15.81" 23.71" Part No. Stroke Valving Length Length
AFC2196-2D* 9" 6-2 15.31" 24.03" AFC74-7-3-6 7" 3C-6R 12.95" 18.85"
AFC2198-2 9" 8-2 15.81" 23.71" AFC74-7-3-7 7" 3C-7R 12.95" 18.85"
AFC2199-2 9" 9-2 15.81" 23.71" AFC74-7-3-8 7" 3C-8R 12.95" 18.85"
* Left side application with increased shock travel. AFC74-7-4-4 7" 4C-4R 12.95" 18.85"
† Special valving controls chassis on rough tracks without compromising AFC74-7-4-5 7" 4C-5R 12.95" 18.85"
handling on normal tracks. AFC74-7-4-6 7" 4C-6R 12.95" 18.85"
AFC74-7-5-3 7" 5C-3R 12.95" 18.85"
AFC74-7-5-5 7" 5C-5R 12.95" 18.85"
PREMIUM SHOCK OIL AFC74-9-3-3 9" 3C-3R 14.95" 22.85"
AFCMT59506 AFC74-9-3-4 9" 3C-4R 14.95" 22.85"
AFC74-9-3-5
9"
14.95"
22.85"
3C-5R
For use in all AFCO rebuildable shocks. One quart bottle. AFC74-9-4-4 9" 4C-4R 14.95" 22.85"
AFC74-9-6-3 9" 6C-3R 14.95" 22.85"
AFC74-9-7-2 9" 7C-2R 14.95" 22.85"
AFC74-9-8-2 9" 8C-2R 14.95" 22.85"
AFC74-9-9-2 9" 9C-2R 14.95" 22.85"
MONO-TUBE GAS SHOCK
SPLIT VALVE SHOCKS INFLATION GAUGE ASSEMBLY
In AFCO part numbers, split valve shocks are separated by a dash AFC20109
(compression-rebound). Example: AFC1573-5 shock has a compression of 3 Required when installing gas into AFCO mono-tube
and a rebound of 5. gas shock absorbers.

150
