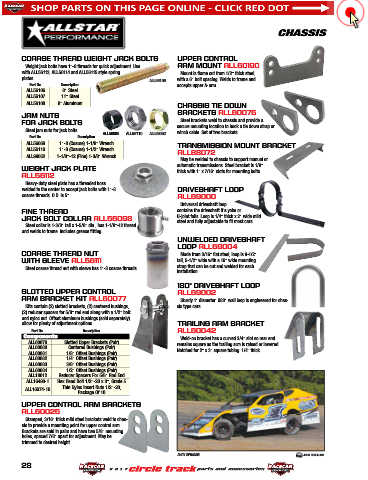

Page 29 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

CHASSIS

COARSE THREAD WEIGHT JACK BOLTS UPPER CONTROL
Weight jack bolts have 1"-8 threads for quick adjustment. Use ARM MOUNT ALL60190
with ALL56113, ALL56114 and ALL56115 style spring Mount is flame cut from 1/2" thick steel,
plates.
ALL56106 with a 6" bolt spacing. Welds to frame and
Part No. Description accepts upper A-arm.
ALL56106 8" Steel
ALL56107 11" Steel
ALL56108 8" Aluminum CHASSIS TIE DOWN

JAM NUTS BRACKETS ALL60075
Steel brackets weld to chassis and provide a
FOR JACK BOLTS secure mounting location to hook a tie down strap or
Steel jam nuts for jack bolts winch cable. Set of two brackets.
ALL56068 ALL56110 ALL99052
Part No. Description
ALL56068 1"-8 (Coarse) 1-1/8" Wrench TRANSMISSION MOUNT BRACKET
ALL56110 1"-8 (Coarse) 1-1/2" Wrench ALL38072
ALL99052 1-1/8"-12 (Fine) 1-3/8" Wrench
May be welded to chassis to support manual or
WEIGHT JACK PLATE automatic transmissions. Steel bracket is 1/8"
thick with 1" x 7/16" slots for mounting bolts.
ALL56112
Heavy-duty steel plate has a threaded boss
welded to the center to accept jack bolts with 1"-8 DRIVESHAFT LOOP
coarse threads. O.D. is 5". ALL69000
Universal driveshaft loop
FINE THREAD contains the driveshaft if a yoke or
JACK BOLT COLLAR ALL56098 U-joint fails. Loop is 1/4" thick x 2" wide mild
steel and fully adjustable to fit most cars.
Steel collar is 1-3/8" tall x 1-5/8" dia., has 1-1/8"-12 thread
and welds to frame. Includes grease fitting.
UNWELDED DRIVESHAFT
LOOP ALL69004
COARSE THREAD NUT Made from 3/16" flat steel, loop is 9-1/2"
WITH SLEEVE ALL56111 tall, 5-1/2" wide with a 16" wide mounting
Steel coarse thread nut with sleeve has 1"-8 coarse threads. strap that can be cut and welded for each
installation.
180° DRIVESHAFT LOOP
SLOTTED UPPER CONTROL ALL69002
ARM BRACKET KIT ALL60077 Sturdy 1" diameter .083" wall loop is engineered for chas-
Kits contain (2) slotted brackets, (2) centered bushings, sis type cars.
(2) reducer spacers for 5/8" rod end along with a 1/2" bolt
and nyloc nut. Offset aluminum bushings (sold separately)
allow for plenty of adjustment options. TRAILING ARM BRACKET
Part No. Description ALL60042
Components Weld-on bracket has a curved 3/4" slot so rear end
ALL60078 Slotted Upper Brackets (Pair) remains square as the trailing arm is raised or lowered.
ALL60080 Centered Bushings (Pair) Notched for 2" x 3" square tubing. 1/4" thick.
ALL60081 1/8" Offset Bushings (Pair)
ALL60082 1/4" Offset Bushings (Pair)
ALL60083 3/8" Offset Bushings (Pair)
ALL60084 1/2" Offset Bushings (Pair)
ALL18612 Reducer Spacers For 5/8" Rod End
ALL16490-1 Hex Head Bolt 1/2"-20 x 3", Grade 5
Thin Nyloc Insert Nuts 1/2"-20,
ALL16074-10
Package Of 10
UPPER CONTROL ARM BRACKETS
ALL60025
Stamped, 3/16" thick mild steel brackets weld to chas-
sis to provide a mounting point for upper control arm.
Brackets are sold in pairs and have two 5/8" mounting
holes, spaced 7/8" apart for adjustment. May be
trimmed to desired height.
