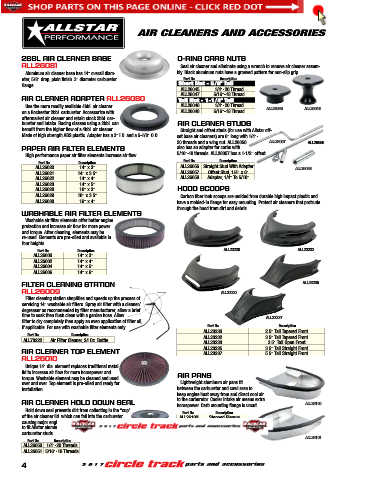

Page 5 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

AIR CLEANERS AND ACCESSORIES

2BBL AIR CLEANER BASE O-RING CARB NUTS
ALL26081 Seal air cleaner and eliminate using a wrench to remove air cleaner assem-
Aluminum air cleaner base has 14" overall diam- bly. Black aluminum nuts have a grooved pattern for non-slip grip.
eter, 5/8" drop, plain finish. 3" diameter carburetor Part No. Description
flange. Short Nut - 5/8" Tall
ALL26045 1/4"-20 Thread
ALL26047 5/16"-18 Thread
AIR CLEANER ADAPTER ALL26080 Tall Nut - 1-1/4" Tall
Use the more readily available 4bbl. air cleaner ALL26046 1/4"-20 Thread ALL26045 ALL26046
on a Rochester 2bbl. carburetor. Accessorize with ALL26048 5/16"-18 Thread
aftermarket air cleaner and retain stock 2bbl. car-
buretor and intake. Racing classes using a 2bbl. can AIR CLEANER STUDS
benefit from the higher flow of a 4bbl. air cleaner. Straight and offset studs (for use with Allstar off-
Made of high strength ABS plastic. Adapter has a 3" I.D. and a 5-1/8" O.D. set base air cleaners) are 6" long with 1/4"-
20 threads and a wing nut. ALL26056 ALL26057 ALL26056
PAPER AIR FILTER ELEMENTS also has an adapter for carbs with
High performance paper air filter elements increase air flow. 5/16"-18 threads. ALL26057 has a 1-1/2" offset.
Part No. Description Part No. Description
ALL26020 14" x 3" ALL26056 Straight Stud With Adapter ALL26058
ALL26021 14" x 3.5" ALL26057 Offset Stud, 1/4" x 6"
ALL26022 14" x 4" ALL26058 Adapter, 1/4" To 5/16"
ALL26023 14" x 5"
ALL26028 16" x 3" HOOD SCOOPS
ALL26029 16" x 3.5" Carbon fiber look scoops are molded from durable high impact plastic and
ALL26030 16" x 4" have a molded-in flange for easy mounting. Protect air cleaners that protrude
through the hood from dirt and debris.
WASHABLE AIR FILTER ELEMENTS
Washable air filter elements offer better engine
protection and increase air flow for more power
and torque. After cleaning, elements may be
re-used. Elements are pre-oiled and available in
four heights.
Part No. Description ALL23230 ALL23232
ALL26000 14" x 3"
ALL26002 14" x 4"
ALL26004 14" x 5"
ALL26006 14" x 6"
FILTER CLEANING STATION ALL23235
ALL26009 ALL23233
Filter cleaning station simplifies and speeds up the process of
servicing 14" washable air filters. Spray air filter with a cleaner/
degreaser as recommended by filter manufacturer, allow a brief
time to soak then flush clean with a garden hose. Allow ALL23237
filter to dry completely then apply an even application of filter oil,
Description
Part No.
if applicable. For use with washable filter elements only. ALL23230 2.5" Tall Tapered Front
Part No. Description ALL23232 3.5" Tall Tapered Front
ALL78222 Air Filter Cleaner, 24 Oz. Bottle ALL23233 3.5" Tall Open Front
ALL23235 3.5" Tall Straight Front
AIR CLEANER TOP ELEMENT ALL23237 5.5" Tall Straight Front
ALL26010
Unique 14" dia. element replaces traditional metal
lid to increase air flow for more horsepower and
torque. Washable element may be cleaned and used AIR PANS
over and over. Top element is pre-oiled and ready for Lightweight aluminum air pans fit
installation. between the carburetor and cowl area to
keep engine heat away from and direct cool air
AIR CLEANER HOLD DOWN SEAL to the carburetor. Cooler intake air means extra ALL26100
horsepower. Carb mounting flange is uncut.
Hold down seal prevents dirt from collecting in the “cup” Part No. Description
of the air cleaner lid, which can fall into the carburetor ALL26100 Stepped Plenum
causing major engine damage. This is specially designed ALL26101 Flat Plenum
to fit Allstar aluminum air cleaner lids. Available to fit 1/4" or 5/16"
carburetor studs.
ALL26101
Part No. Description
ALL26050 1/4"-20 Threads
ALL26051 5/16"-18 Threads
4
