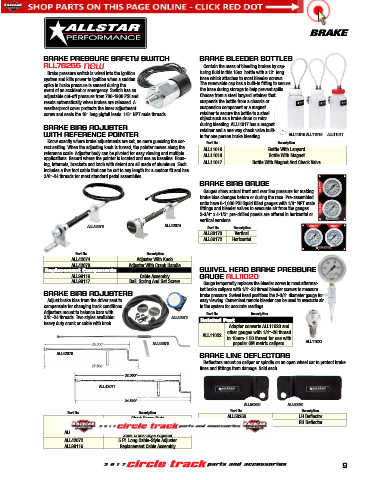

Page 10 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

BRAKE

BRAKE PRESSURE SAFETY SWITCH BRAKE BLEEDER BOTTLES
ALL76255 Contain the mess of bleeding brakes by cap-
Brake pressure switch is wired into the ignition turing fluid in this 16oz. bottle with a 12" long
system and kills power to ignition when a sudden hose which attaches to most bleeder screws.
spike in brake pressure is sensed during the The removable cap has a built-in fitting to secure
event of an accident or emergency. Switch has an the hose during storage to help prevent spills.
adjustable cut-off pressure from 700-1900 PSI and Choose from a steel lanyard retainer that
resets automatically when brakes are released. A suspends the bottle from a chassis or
weatherproof cover protects the inner adjustment suspension component or a magnet
screw and seals the 18" long pigtail leads. 1/8" NPT male threads. retainer to secure the bottle to a steel
object such as a brake drum or rotor
BRAKE BIAS ADJUSTER during bleeding. ALL11017 has a magnet
retainer and a one way check valve built-
WITH REFERENCE POINTER in for one person brake bleeding. ALL11019 ALL11018 ALL11017
Know exactly where brake adjustments are set, no more guessing the cor- Part No. Description
rect setting. When the adjusting knob is turned, the pointer moves along the ALL11019 Bottle With Lanyard
reference scale. Adjuster body can be pivoted for easy viewing and multiple ALL11018 Bottle With Magnet
applications. Record where the pointer is located and use as baseline. Hous-
ing, internals, brackets and knob with detent are all made of aluminum. Each ALL11017 Bottle With Magnet And Check Valve
includes a five foot cable that can be cut to any length for a custom fit and has
3/8"-24 threads for most standard pedal assemblies.
BRAKE BIAS GAUGE
Gauges show actual front and rear line pressure for making
brake bias changes before or during the race. Pre-assembled
units have 0-1,000 PSI liquid filled gauges with 1/8" NPT male
fittings and bleeder valves to evacuate air from the gauges.
2-3/4" x 4-1/2" pre-drilled panels are offered in horizontal or
vertical versions.
ALL42078 ALL42074 Part No. Description
ALL80170 Vertical
ALL80172 Horizontal

Part No. Description
ALL42074 Adjuster With Knob
ALL42078 Adjuster With Crank Handle
Replacement Components SWIVEL HEAD BRAKE PRESSURE
ALL99116 Cable Assembly GAUGE ALL11020
ALL99117 Ball, Spring And Set Screw Gauge temporarily replaces the bleeder screw in most aftermar-
ket brake calipers with 1/4"-28 thread bleeder screws to measure
BRAKE BIAS ADJUSTERS brake pressure. Swivel head positions the 2-3/4" diameter gauge for
Adjust brake bias from the driver seat to easy viewing. Convenient remote bleeder can be used to evacuate air
compensate for changing track conditions. in the system for accurate readings.
Adjusters mount to balance bars with Part No. Description
3/8"-24 threads. Two styles available: ALL42072 Related Part
heavy duty crank or cable with knob.
Adapter converts ALL11020 and
other gauges with 1/4"-28 thread
ALL11022
to 10mm-1.50 thread for use with
ALL42070 popular GM metric calipers. ALL11022
ALL42070 BRAKE LINE DEFLECTORS
Deflectors mount on caliper or spindle on an open wheel car to protect brake
lines and fittings from damage. Sold each.

ALL42071

ALL50250 ALL50251
Part No. Description
Part No. Description
Short Heavy Duty ALL50250 LH Deflector
ALL42070 Steel Crank-Style Adjuster ALL50251 RH Deflector
Long Heavy Duty
ALL42071
Steel Crank-Style Adjuster
ALL42072 5 Ft. Long Cable-Style Adjuster
ALL99116 Replacement Cable Assembly
