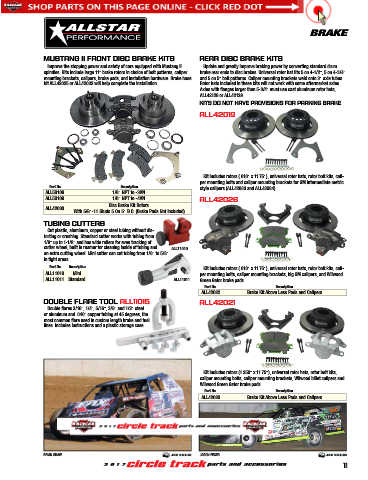

Page 12 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

BRAKE

MUSTANG II FRONT DISC BRAKE KITS REAR DISC BRAKE KITS
Improve the stopping power and safety of cars equipped with Mustang II Update and greatly improve braking power by converting standard drum
spindles. Kits include large 11" brake rotors in choice of bolt patterns, caliper brake rear ends to disc brakes. Universal rotor hat fits 5 on 4-1/2", 5 on 4-3/4"
mounting brackets, calipers, brake pads, and installation hardware. Brake hose and 5 on 5" bolt patterns. Caliper mounting brackets weld onto 3" axle tubes.
kit ALL42025 or ALL42032 will help complete the installation. Rotor hats included in these kits will not work with some aftermarket axles.
Axles with flanges larger than 5-3/4" must use cast aluminum rotor hats,
ALL42128 or ALL42129.
KITS DO NOT HAVE PROVISIONS FOR PARKING BRAKE
ALL42019

Kit includes rotors (.810" x 11.75"), universal rotor hats, rotor bolt kits, cali-
per mounting bolts and caliper mounting brackets for GM intermediate metric
Part No. Description style calipers (ALL42083 and ALL42084).
ALL50108 1/8" NPT to -3AN
ALL50109 1/8" NPT to -4AN ALL42023
Disc Brake Kit Rotors
ALL42030
With 5/8"-11 Studs 5 On 5" B.C. (Brake Pads Not Included)
TUBING CUTTERS
Cut plastic, aluminum, copper or steel tubing without dis-
torting or crushing. Standard cutter works with tubing from
1/8" up to 1-1/8" and has wide rollers for even tracking of
cutter wheel, built in reamer for cleaning inside of tubing and ALL11010
an extra cutting wheel. Mini cutter can cut tubing from 1/8" to 5/8"
in tight areas.
Part No. Description Kit includes rotors (.810" x 11.75"), universal rotor hats, rotor bolt kits, cali-
ALL11010 Mini per mounting bolts, caliper mounting brackets, big GM calipers, and Wilwood
ALL11011 Standard ALL11011 Green Gator brake pads.
Part No. Description
ALL42022 Brake Kit Above Less Pads and Calipers
DOUBLE FLARE TOOL ALL11015 ALL42021
Double flares 3/16", 1/4", 5/16", 3/8" and 1/2" steel
or aluminum and .040" copper tubing at 45 degrees, the
most common flare used in custom length brake and fuel
lines. Includes instructions and a plastic storage case.

Kit includes rotors (1.250" x 11.75"), universal rotor hats, rotor bolt kits,
caliper mounting bolts, caliper mounting brackets, Wilwood billet calipers and
Wilwood Green Gator brake pads.
Part No. Description
ALL42020 Brake Kit Above Less Pads and Calipers

BRIAN SHAW JOHN BERGLUND JASON FEGER JOHN BERGLUND
11
