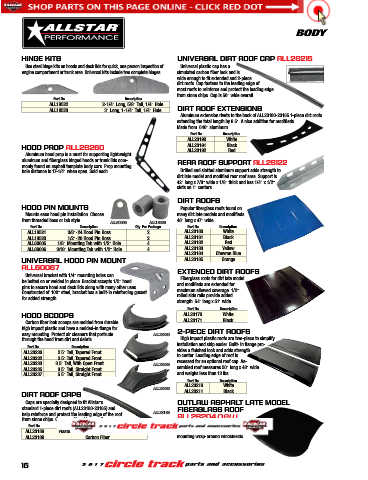

Page 17 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

BODY

HINGE KITS UNIVERSAL DIRT ROOF CAP ALL23215
Use steel hinge kits on hoods and deck lids for quick, one person inspection of Universal plastic cap has a
engine compartment or trunk area. Universal kits include two complete hinges. simulated carbon fiber look and is
wide enough to fit extended and 2-piece
dirt roofs. Cap fastens to the leading edge of
most roofs to reinforce and protect the leading edge
from stone chips. Cap is 50" wide overall.
Part No. Description
ALL18522 2-1/4" Long, 5/8" Tall, 1/4" Hole
ALL18523 3" Long, 1-1/4" Tall, 1/4" Hole DIRT ROOF EXTENSIONS
Aluminum extension rivets to the back of ALL23180-23185 1-piece dirt roofs
extending the total length by 8.5". A nice addition for modifieds.
Made from .040" aluminum.
Part No. Description
ALL23190 White
HOOD PROP ALL23260 ALL23191 Black
Red
ALL23192
Aluminum hood prop is a must for supporting lightweight
aluminum and fiberglass hinged hoods or trunk lids com- REAR ROOF SUPPORT ALL23122
monly found on asphalt template body cars. Prop mounting
hole distance is 17-1/4" when open. Sold each. Drilled and slotted aluminum support adds strength to
dirt late model and modified rear roof area. Support is
42" long x 7/8" wide x 1/8" thick and has 1/4" x 1/2"
slots on 1" centers.
DIRT ROOFS
HOOD PIN MOUNTS Popular fiberglass roofs found on
Mounts ease hood pin installation. Choose many dirt late models and modifieds.
from threaded boss or tab style. ALL60005 ALL18520 46" long x 47" wide.
Part No. Description Qty. Per Package Part No. Description
ALL18521 3/8"-24 Hood Pin Boss 2 ALL23180 White
ALL18520 1/2"-20 Hood Pin Boss 2 ALL23181 Black
ALL60005 1/8" Mounting Tab with 1/2" Hole 4 ALL23182 Red
ALL60006 3/16" Mounting Tab with 1/2" Hole 4 ALL23183 Yellow
ALL23184 Chevron Blue
UNIVERSAL HOOD PIN MOUNT ALL23185 Orange
ALL60067 EXTENDED DIRT ROOFS
Universal bracket with 1/4" mounting holes can
be bolted on or welded in place. Bracket accepts 1/2" hood Fiberglass roofs for dirt late model
pins to secure hood and deck lids along with many other uses. and modifieds are extended for
Constructed of .100" steel, bracket has a built-in reinforcing gusset maximum allowed coverage. 1/2"
for added strength. rolled side rails provide added
strength. 54" long x 51" wide.
Part No. Description
HOOD SCOOPS ALL23170 White
Carbon fiber look scoops are molded from durable ALL23171 Black
high impact plastic and have a molded-in flange for 2-PIECE DIRT ROOFS
easy mounting. Protect air cleaners that protrude ALL23230
through the hood from dirt and debris. High impact plastic roofs are two-piece to simplify
Part No. Description installation and ship easier. Built- in flange pro-
ALL23230 2.5" Tall, Tapered Front vides a finished look and adds strength
ALL23232 3.5" Tall, Tapered Front to center. Leading edge of roof is
ALL23233 3.5" Tall, With Open Front ALL23233 recessed for an optional roof cap. As-
ALL23235 3.5" Tall, Straight Front sembled roof measures 50" long x 48" wide
ALL23237 5.5" Tall, Straight Front and weighs less than 13 lbs.
Part No. Description
ALL23210 White
ALL23235 ALL23211 Black
DIRT ROOF CAPS
Caps are specially designed to fit Allstar’s OUTLAW ASPHALT LATE MODEL
standard 1-piece dirt roofs (ALL23180-23185) and FIBERGLASS ROOF
help reinforce and protect the leading edge of the roof ALL23188
from stone chips. Caps are 43" wide overall. ALL23204
Part No. Description Black roof has a molded-in recess
ALL23188 Plastic With Simulated Carbon Fiber Look to provide a smooth transition for
ALL23189 Carbon Fiber mounting wrap-around windshields.
