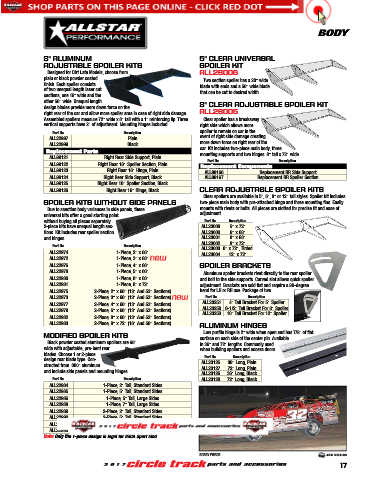

Page 18 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

BODY

8" ALUMINUM 5" CLEAR UNIVERSAL
ADJUSTABLE SPOILER KITS SPOILER KIT
Designed for Dirt Late Models, choose from ALL23006
plain or black powder coated Two section spoiler has a 20" wide
finish. Each spoiler consists blade with ends and a 50" wide blade
of two unequal length laser cut that can be cut to desired width.
sections, one 16" wide and the
other 56" wide. Unequal length
design blades provide more down force on the 8" CLEAR ADJUSTABLE SPOILER KIT
right rear of the car and allow more spoiler area in case of right side damage. ALL23005
Assembled spoilers measure 72" wide x 8" tall with a 1" reinforcing lip. Three Clear spoiler has a breakaway
vertical supports have 2" of adjustment. Mounting hinges included. right side which allows more
Part No. Description spoiler to remain on car in the
ALL22997 Plain event of right side damage creating
ALL22999 Black more down force on right rear of the
Replacement Parts car. Kit includes two-piece main body, three
mounting supports and two hinges. 8" tall x 72" wide.
ALL99121 Right Rear Side Support, Plain
Part No.
ALL99122 Right Rear 16" Spoiler Section, Plain Replacement Components Description
ALL99123 Right Rear 16" Hinge, Plain ALL99166 Replacement RR Side Support
ALL99124 Right Rear Side Support, Black ALL99167 Replacement RR Spoiler Section
ALL99125 Right Rear 16" Spoiler Section, Black
ALL99126 Right Rear 16" Hinge, Black CLEAR ADJUSTABLE SPOILER KITS
Clear spoilers are available in 5", 6", 8" or 12" tall styles. Spoiler kit includes
SPOILER KITS WITHOUT SIDE PANELS two-piece main body with pre-attached hinge and three mounting fins. Easily
Due to sanction body variances in side panels, these mounts with rivets or bolts. All pieces are slotted for precise fit and ease of
universal kits offer a good starting point adjustment.
without buying all pieces separately. Part No. Description
2-piece kits have unequal length sec- ALL23008 5" x 72"
tions. Kit includes rear spoiler section ALL23000 6" x 68"
and hinges ALL23001 8" x 68"
Part No. Description ALL23002 8" x 72"
ALL23003 8" x 72", Tinted
ALL22974 1-Piece, 2" x 66" ALL23004 12" x 72"
ALL22972 1-Piece, 3" x 66"
ALL22976 1-Piece, 4" x 66" SPOILER BRACKETS
ALL22978 1-Piece, 5" x 66" Aluminum spoiler brackets rivet directly to the rear spoiler
ALL22980 1-Piece, 8" x 66" and bolt to the side supports. Curved slot allows quick spoiler
ALL22981 1-Piece, 8" x 72" adjustment. Brackets are sold flat and require a 90-degree
ALL22975 2-Piece, 2" x 66" (13" And 53" Sections) bend for LH or RH use. Package of two.
ALL22973 2-Piece, 3" x 66" (13" And 53" Sections) Part No. Description
ALL22977 2-Piece, 4" x 66" (13" And 53" Sections) ALL23251 4" Tall Bracket For 5" Spoiler
ALL22979 2-Piece, 5" x 66" (13" And 53" Sections) ALL23250 6-1/2" Tall Bracket For 8" Spoiler
ALL22982 2-Piece, 8" x 66" (13" And 53" Sections) ALL23253 10" Tall Bracket For 12" Spoiler
ALL22983 2-Piece, 8" x 72" (16" And 56" Sections) ALUMINUM HINGES
Low profile hinge is 2" wide when open and has 7/8" of flat
MODIFIED SPOILER KITS surface on each side of the center pin. Available
Black powder coated aluminum spoilers are 66" in 36" and 72" lengths. Commonly used
wide with adjustable, pre-bent rear when building spoilers and access doors.
blades. Choose 1 or 2-piece Part No. Description
design rear blade type. Con- ALL23125 36" Long, Plain
structed from .080" aluminum ALL23127 72" Long, Plain
and include side panels and mounting hinges. ALL23126 36" Long, Black
Part No. Description ALL23128 72" Long, Black
ALL22984 1-Piece, 2" Tall, Standard Sides
ALL22985 1-Piece, 5" Tall, Standard Sides
ALL22986 1-Piece, 5" Tall, Large Sides
ALL22988 1-Piece, 7" Tall, Large Sides
ALL22989 2-Piece, 2" Tall, Standard Sides
ALL22990 2-Piece, 5" Tall, Standard Sides
ALL22991 2-Piece, 5" Tall, Large Sides
ALL22993 2-Piece, 7" Tall, Large Sides
Note: Only the 1-piece design is legal for IMCA Sport Mod

BOBBY PIERCE JOHN BERGLUND
17
