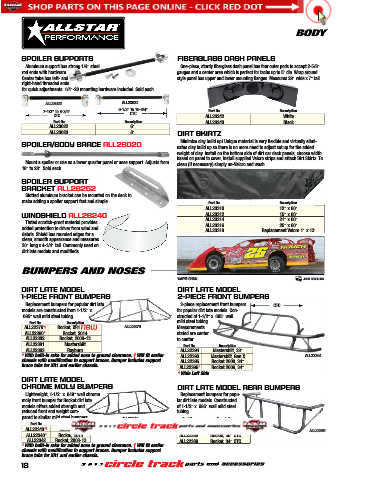

Page 19 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

BODY

SPOILER SUPPORTS FIBERGLASS DASH PANELS
Aluminum support has strong 1/4" steel One-piece, sturdy fiberglass dash panel has four outer pods to accept 2-5/8"
rod ends with hardware. gauges and a center area which is perfect for tachs up to 5" dia. Wrap around
Center tube has left- and style panel has upper and lower mounting flanges. Measures 29" wide x 7" tall.
right-hand threaded ends
for quick adjustments. 1/4"-20 mounting hardware included. Sold each.
ALL23022 ALL23023
9-1/2" To 10-3/4"
7-1/2" To 8-3/4" CTC Part No. Description
CTC ALL23242 White
Part No. Description ALL23243 Black
ALL23022 6"
ALL23023 8" DIRT SKIRTZ
Minimize clay build up! Unique material is very flexible and virtually elimi-
SPOILER/BODY BRACE ALL23020 nates clay build up so there is no more need to adjust set up for the added
weight of clay. Install on the bottom side of dirt car deck panels, choose width
based on panel to cover, install supplied Velcro strips and attach Dirt Skirtz. To
Mount a spoiler or use as a lower quarter panel or nose support. Adjusts from clean (if necessary) simply un-Velcro and wash.
16" to 28". Sold each.
SPOILER SUPPORT
BRACKET ALL23252
Slotted aluminum bracket can be mounted on the deck to
make adding a spoiler support fast and simple. Part No. Description
ALL23310 12" x 60"
WINDSHIELD ALL23240 ALL23312 15" x 60"
Tinted scratch-proof material provides ALL23314 21" x 60"
25" x 60"
ALL23316
added protection to driver from wind and ALL23318 Replacement Velcro 1" x 13'
debris. Shield has rounded edges for a
clean, smooth appearance and measures
30" long x 4-1/4" tall. Commonly used on
dirt late models and modifieds.
BUMPERS AND NOSES
WAYNE CHINN JOHN BERGLUND
DIRT LATE MODEL DIRT LATE MODEL
1-PIECE FRONT BUMPERS 2-PIECE FRONT BUMPERS
Replacement bumpers for popular dirt late 2-piece replacement front bumpers CTC
models are constructed from 1-1/2" x for popular dirt late models. Con-
.095" wall mild steel tubing. structed of 1-1/2" x .095" wall
Part No. Description mild steel tubing.
ALL22379* † Rocket, XR1 ALL22379 Measurements
ALL22380* Rocket, 2014 stated are center
ALL22382 Rocket, 2008-13 to center.
ALL22381 Mastersbilt Part No. Description
ALL22383 Rayburn ALL22394 Mastersbilt, 33"
* With built-in rake for added nose to ground clearance. † Will fit earlier ALL22393 Mastersbilt, Gen X ALL22394
chassis with modification to support braces. Bumper includes support ALL22395 Rocket 2008, 34"
brace tabs for XR1 and earlier chassis.
ALL22396* Rocket 2009, 34"
* Wide Left Side
DIRT LATE MODEL
CHROME MOLY BUMPERS DIRT LATE MODEL REAR BUMPERS
Lightweight, 1-1/2" x .049" wall chrome Replacement bumpers for popu-
moly front bumper for Rocket dirt late lar dirt late models. Constructed
models offers added strength and of 1-1/2" x .095" wall mild steel
reduced front end weight com- tubing.
pared to similar mild steel bumpers. ALL22343 Part No. Description
Part No. Description ALL22387 Mastersbilt
ALL22343* † Rocket, XR1 ALL22384 Mastersbilt, Gen X ALL22384
ALL22340* Rocket, 2014 ALL22388 Rocket, 36" CTC
ALL22342 Rocket, 2008-13 ALL22389 Rocket, 34" CTC
* With built-in rake for added nose to ground clearance. † Will fit earlier
chassis with modification to support braces. Bumper includes support
brace tabs for XR1 and earlier chassis.
18
