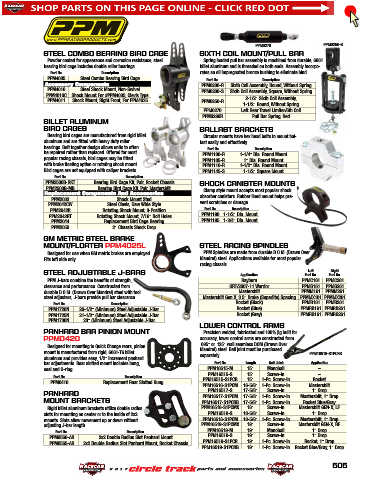

Page 506 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

PPM0270 PPM0250-R
STEEL COMBO BEARING BIRD CAGE SIXTH COIL MOUNT/PULL BAR
Powder coated for appearance and corrosion resistance, steel Spring loaded pull bar assembly is machined from durable, 6061
bearing bird cage includes double roller bearings. billet aluminum and is threaded on both ends. Assembly incorpo-
Part No. Description rates an oil impregnated bronze bushing to eliminate bind.
PPM4035 Steel Combo Bearing Bird Cage Part No. Description
Accessory Components PPM0200-R Sixth Coil Assembly, Round, Without Spring
PPM4010 Steel Shock Mount, Non-Swivel PPM0200-S Sixth Coil Assembly, Square, Without Spring
PPM4010C Shock Mount For #PPM4035, Clevis Type
PPM4011 Shock Mount, Right Front, For PPM4035 PPM0250-R 2-1/2" Sixth Coil Assembly,
1-1/2" Round, Without Spring
PPM0270 Left Rear Travel Limiter/6th Coil
PPM0290R Pull Bar Spring, Red
BILLET ALUMINUM
BIRD CAGES BALLAST BRACKETS
Bearing bird cages are manufactured from rigid billet Circular mounts have hex head bolts to mount bal-
aluminum and are fitted with heavy duty roller last easily and effectively.
bearings. Bolt together design allows units to often Part No. Description
be repaired rather than replaced. Offered for most PPM1100-R 1-1/4" Dia. Round Mount
popular racing chassis, bird cages may be fitted PPM1105-R 1" Dia. Round Mount
with brake floating option or rotating shock mount. PPM1110-R 1-1/2" Dia. Round Mount
Bird cages are not equipped with caliper brackets. PPM1145-S 1-1/2" Square Mount
Part No. Description
PPM2500B-RKT Bearing Bird Cage Kit, Pair, Rocket Chassis SHOCK CANISTER MOUNTS
PPM2500B-MB Bearing Bird Cage Kit, Pair, Mastersbilt Clamp style mount accepts most popular shock
Replacement Components And Accessories absorber canisters. Rubber lined mount helps pre-
PPM2033 Shock Mount Stud
PPM2042CW Steel Clevis, New Wide Style vent scratches or damage.
PPM2042R Rotating Shock Mount, 3-Position Part No. Description
PPM2042RT Rotating Shock Mount, 7/16" Bolt Holes PPM1190 1-1/2" Dia. Mount
PPM2044 Replacement Bird Cage Bearing PPM1195 1-3/4" Dia. Mount
PPM2050 2" Chassis Shock Drop
GM METRIC STEEL BRAKE
MOUNT/FLOATER PPM4025L STEEL RACING SPINDLES
Designed for use when GM metric brakes are employed. PPM Spindles are made from durable D.O.M. (Drawn Over
Fits left side only. Mandrel) steel. Applications available for most popular
racing chassis.
Right
Left
STEEL ADJUSTABLE J-BARS Application Part No. Part No.
PPM J-bars combine the benefits of strength, Rayburn PPMC161 PPMC261
clearance and performance. Constructed from GRT/2007-11 Warrior PPMG161 PPMG261
durable D.O.M. (Drawn Over Mandrel) steel with tool Mastersbilt PPMM161 PPMM261
steel adjusters, J-bars provide pull bar clearance. Mastersbilt Gen X, 3.5" Brake (Superlite) Spacing PPMMX161 PPMMX261
Part No. Description Rocket (Black) PPMR161 PPMR261
PPM1720N 20-1/2" (Minimum) Steel Adjustable J-Bar Rocket (Blue) PPMRB161 PPMRB261
PPM1725N 21-1/2" (Minimum) Steel Adjustable J-Bar Rocket (Grey) PPMRG161 PPMRG261
PPM1730N 23" (Minimum) Steel Adjustable J-Bar
LOWER CONTROL ARMS
PANHARD BAR PINION MOUNT Precision welded, fabricated and 100% jig built for
PPM0420 accuracy, lower control arms are constructed from
Designed for mounting to Quick Change rears, pinion .095" or .125" wall seamless DOM (Drawn Over
mount is manufactured from rigid, 6061-T6 billet Mandrel) steel. Ball joint must be purchased PPM16519-S1PCRB
aluminum and provides easy, 1/2" increment panhard separately.
bar adjustments. Rear slotted mount includes bung, Part No. Length Ball Joint Application
seal and O-ring. PPM16515-M 15" Monoball – –
PPM16515-S
15"
Screw-In
Part No. Description PPM16515-S1PCR 15" 1-Pc. Screw-In Rocket
PPM0410 Replacement Rear Slotted Bung PPM16516-S1PCM 16-5/8" 1-Pc. Screw-In Mastersbilt
PPM16517-S 17-5/8" Screw-In 1" Drop
PANHARD PPM16517-S1PCM 17-5/8" 1-Pc. Screw-In Mastersbilt, 1" Drop
MOUNT BRACKETS PPM16517-S1PCRB 17-5/8" 1-Pc. Screw-In Rocket Blue/Gray
Rigid billet aluminum brackets utilize double radius PPM16518-S1PCMX 18" Screw-In Mastersbilt GEN-X, LF
slots for mounting on center or to the inside of 2x2 PPM16518-S 18-5/8" Screw-In 1" Drop
mounts. Slots allow movement up or down without PPM16518-S1PCM 18-5/8" 1-Pc. Screw-In Mastersbilt, 1" Drop
adjusting J-bar length. PPM16519-S1PCMX 19" Screw-In Mastersbilt GEN-X, RF
PPM16519-M 19" Monoball 1" Drop
Part No. Description
PPM0560-AR 2x2 Double Radius Slot Panhard Mount PPM16519-S 19" Screw-In 1" Drop
PPM0565-AR 2x2 Double Radius Slot Panhard Mount, Rocket Chassis PPM16519-S1PCR 19" 1-Pc. Screw-In Rocket, 1" Drop
PPM16519-S1PCRB 19" 1-Pc. Screw-In Rocket Blue/Gray, 1" Drop
