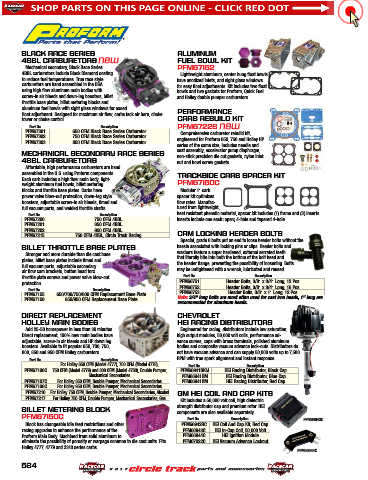

Page 535 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

BLACK RACE SERIES ALUMINUM
4BBL CARBURETORS FUEL BOWL KIT
Mechanical secondary, Black Race Series PFM67162
4BBL carburetors include Black Diamond coating Lightweight aluminum, center hung float bowls
to reduce fuel temperatures. True race style have anodized inlets, and sight glass windows
carburetors are hand assembled in the USA for easy float adjustments. Kit includes two float
using high flow aluminum main bodies with bowls and two gaskets for Proform, Quick Fuel
screw-in air bleeds and down-leg boosters, billet and Holley double pumper carburetors.
throttle base plates, billet metering blocks and
aluminum fuel bowls with sight glass windows for eased
float adjustment. Designed for maximum air flow, carbs lack air horn, choke PERFORMANCE
tower or choke control. CARB REBUILD KIT
Part No. Description PFM67223
PFM67301 650 CFM Black Race Series Carburetor Comprehensive carburetor rebuild kit,
PFM67302 750 CFM Black Race Series Carburetor engineered for Proform 650, 750 and Holley HP
PFM67303 850 CFM Black Race Series Carburetor
series of the same size, includes needle and
MECHANICAL SECONDARY RACE SERIES seat assembly, accelerator pump diaphragm,
4BBL CARBURETORS non-stick precision die cut gaskets, nylon inlet
nut and bowl screw gaskets.
Affordable, high performance carburetors are hand
assembled in the U.S. using Proform components. TRACKSIDE CARB SPACER KIT
Each carb includes a high flow main body, light-
weight aluminum fuel bowls, billet metering PFM67160C
blocks and throttle base plates. Carbs have Modular 1" carb
power valve blow-out protection, down-leg style spacer kit optimizes
boosters, adjustable screw-in air bleeds, timed and flow rates. Manufac-
full vacuum ports, and welded throttle shafts. tured from lightweight,
Part No. Description heat resistant phenolic material, spacer kit includes (1) frame and (3) inserts.
PFM67200 750 CFM 4BBL Inserts include one each: open; 4-hole and tapered 4-hole.
PFM67201 850 CFM 4BBL
PFM67202 950 CFM 4BBL
PFM67215 750 CFM 4BBL, Circle Track Racing CAM LOCKING HEADER BOLTS
Special, grade 8 bolts put an end to loose header bolts without the
BILLET THROTTLE BASE PLATES hassle associated with locking pins or clips. Header bolts and
Stronger and more durable than die cast base washers feature a super hardened, external serrated teeth
plates, billet base plates include timed and that literally bite into both the bottom of the bolt head and
full vacuum ports, adjustable secondary the header flange, preventing the possibility of loosening. Bolts
air flow cam brackets, button head torx may be untightened with a wrench, lubricated and reused.
throttle plate screws and power valve blow-out Part No. Description
protection. PFM66751 Header Bolts, 3/8" x 3/4" Long, 12 Pcs.
Part No. Description PFM66752 Header Bolts, 3/8" x 3/4" Long, 16 Pcs.
PFM66753
Header Bolts, 3/8" x 1" Long, 12 Pcs.
PFM67155 650/700/750/800 CFM Replacement Base Plate Note: 3/4" long bolts are most often used for cast iron heads, 1" long are
PFM67156 850/950 CFM Replacement Base Plate recommended for aluminum heads.
DIRECT REPLACEMENT CHEVROLET
HOLLEY MAIN BODIES HEI RACING DISTRIBUTORS
Add 25-50 horsepower in less than 30 minutes. Engineered for racing, distributors include low saturation,
Direct replacement, 100% new main bodies have high output modules, 50,000 volt coils, performance ad-
adjustable, screw-in air bleeds and HP down leg vance curves, caps with brass terminals, polished aluminum
boosters. Available to fit popular 650, 700, 750, bodies and composite vacuum advance lock-outs. Distributors do
800, 850 and 950 CFM Holley carburetors. not have vacuum advance and can supply 50,000 volts up to 7,500
Part No. Description RPM with true spark alignment and instant response.
For Holley 650 CFM (Model 4777), 700 CFM (Model 4778), Part No. Description
PFM67100C 750 CFM (Model 4779) and 800 CFM (Model 4780), Double Pumper, PFM66941BKM HEI Racing Distributor, Black Cap
Mechanical Secondaries PFM66941BM HEI Racing Distributor, Blue Cap
PFM67107C For Holley 850 CFM, Double Pumper, Mechanical Secondaries PFM66941RM HEI Racing Distributor, Red Cap
PFM67108C For Holley 950 CFM, Double Pumper, Mechanical Secondaries
PFM67216 For Holley 750 CFM, Double Pumper, Mechanical Secondaries, Alcohol GM HEI COIL AND CAP KITS
PFM67217 For Holley 750 CFM, Double Pumper, Mechanical Secondaries, Gas
Kit includes a 50,000 volt coil, high dielectric
BILLET METERING BLOCK strength distributor cap and premium rotor. HEI
components are also available separately.
PFM67150C Part No. Description PFM66943C
Block has changeable idle feed restrictions and other PFM66942RC HEI Coil And Cap Kit, Red Cap
racing upgrades to enhance the performance of the PFM66943C HEI In-Cap Coil, 50,000 Volt
Proform Main Body. Machined from solid aluminum to PFM66944C HEI Ignition Module
eliminate the possibility of porosity or warpage common to die cast units. Fits PFM67022C HEI Vacuum Advance Lockout
Holley 4777, 4779 and 3310 series carbs.
PFM66944C
