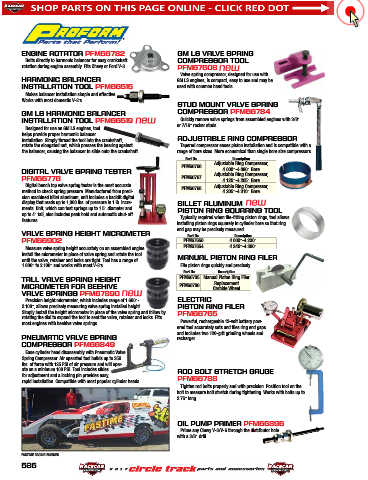

Page 537 - 2017 Racecar Engineering Circle Track Parts and Accessories Catalog

ENGINE ROTATOR PFM66782 GM LS VALVE SPRING
Bolts directly to harmonic balancer for easy crankshaft COMPRESSOR TOOL
rotation during engine assembly. Fits Chevy or Ford V-8. PFM67603
Valve spring compressor, designed for use with
HARMONIC BALANCER GM LS engines, is compact, easy to use and may be used
INSTALLATION TOOL PFM66515 used with common hand tools.
Makes balancer installation simple and effective.
Works with most domestic V-8’s.
STUD MOUNT VALVE SPRING
GM LS HARMONIC BALANCER COMPRESSOR PFM66784
INSTALLATION TOOL PFM66519 Quickly remove valve springs from assembled engines with 3/8"
Designed for use on GM LS engines, tool or 7/16" rocker studs.
helps provide proper harmonic balancer
installation. Simply thread the tool into the crankshaft, ADJUSTABLE RING COMPRESSOR
rotate the elongated nut, which presses the bearing against Tapered compressor eases piston installation and is compatible with a
the balancer, causing the balancer to slide onto the crankshaft. range of bore sizes. More economical than single bore size compressors.
Part No. Description
Adjustable Ring Compressor,
PFM66766
4.000"-4.090" Bore
DIGITAL VALVE SPRING TESTER Adjustable Ring Compressor,
PFM66776 PFM66767 4.125"-4.205" Bore
Digital bench top valve spring tester is the most accurate PFM66768 Adjustable Ring Compressor,
method to check spring pressure. Manufactured from preci- 4.205"-4.310" Bore
sion machined billet aluminum, unit includes a backlit digital
display that reads up to 1,000 lbs. of pressure in 1 lb. incre- BILLET ALUMINUM
ments. Unit, which can test springs up to 1.5" diameter and PISTON RING SQUARING TOOL
up to 4" tall, also includes peak hold and automatic shut-off Typically required when file-fitting piston rings, tool allows
features.
installing piston rings squarely in cylinder bore so that ring
end gap may be precisely measured.
VALVE SPRING HEIGHT MICROMETER Part No. Description
PFM66902 PFM67656 4.000"-4.230"
Measure valve spring height accurately on an assembled engine. PFM67654 4.240"-4.380"
Install the micrometer in place of valve spring and rotate the tool
until the valve, retainer and locks are tight. Tool has a range of MANUAL PISTON RING FILER
1.600" to 2.100" and works with most V-8’s. File piston rings quickly and precisely.
Part No. Description
TALL VALVE SPRING HEIGHT PFM66785 Manual Piston Ring Filer
Replacement
MICROMETER FOR BEEHIVE PFM66786 Carbide Wheel
VALVE SPRINGS PFM67390
Precision height micrometer, which includes range of 1.600"- ELECTRIC
2.100", allows precisely measuring valve spring installed height. PISTON RING FILER
Simply install the height micrometer in place of the valve spring and follow by PFM66765
rotating the dial to expand the tool to seat the valve, retainer and locks. Fits
most engines with beehive valve springs. Powerful, rechargeable 12-volt battery pow-
ered tool accurately sets and files ring end gaps
and includes two 120-grit grinding wheels and
PNEUMATIC VALVE SPRING recharger.
COMPRESSOR PFM66849
Ease cylinder head disassembly with Pneumatic Valve
Spring Compressor. Air operated tool builds up to 350
lbs. of force with 125 PSI of air pressure and will oper-
ate on a minimum 100 PSI. Tool includes slides ROD BOLT STRETCH GAUGE
for adjustment and a locking pin provides easy,
rapid installation. Compatible with most popular cylinder heads. PFM66788
Tighten rod bolts properly and with precision. Position tool on the
bolt to measure bolt stretch during tightening. Works with bolts up to
2.75" long.

OIL PUMP PRIMER PFM66896
Prime any Chevy V-8/V-6 through the distributor hole
with a 3/8" drill.
