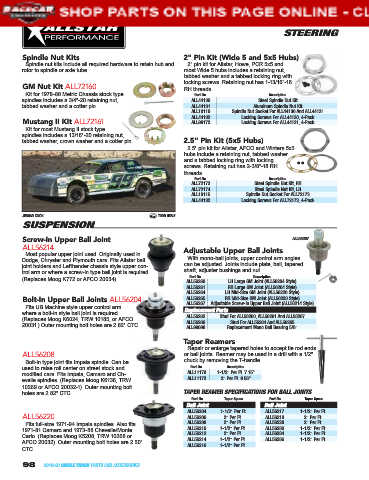

Page 102 - 2019-2020 Racecar Engineering Circle Track Parts and Accessories Catalog

STEERING

Spindle Nut Kits 2" Pin Kit (Wide 5 and 5x5 Hubs)
Spindle nut kits include all required hardware to retain hub and 2" pin kit for Allstar, Howe, PCR 5x5 and
rotor to spindle or axle tube. most Wide 5 hubs includes a retaining nut,
tabbed washer and a tabbed locking ring with
locking screws. Retaining nut has 1-13/16"-16
GM Nut Kit ALL72160 RH threads.
Kit for 1978-88 Metric Chassis stock type Part No. Description
spindles includes a 3/4"-20 retaining nut, ALL44130 Steel Spindle Nut Kit
tabbed washer and a cotter pin. ALL44131 Aluminum Spindle Nut Kit
ALL10110 Spindle Nut Socket For ALL44130 And ALL44131
ALL44132 Locking Screws For ALL44130, 4-Pack
Mustang II Kit ALL72161 ALL99172 Locking Screws For ALL44131, 4-Pack
Kit for most Mustang II stock type
spindles includes a 13/16"-20 retaining nut,
tabbed washer, crown washer and a cotter pin. 2.5" Pin Kit (5x5 Hubs)
2.5" pin kit for Allstar, AFCO and Winters 5x5
hubs include a retaining nut, tabbed washer
and a tabbed locking ring with locking
screws. Retaining nut has 2-3/8"-18 RH
threads.
Part No. Description
ALL72173 Steel Spindle Nut Kit, RH
ALL72174 Steel Spindle Nut Kit, LH
ALL10115 Spindle Nut Socket For ALL72173
ALL44132 Locking Screws For ALL72173, 4-Pack

JERRAD KRICK TODD HEALY
SUSPENSION

Screw-In Upper Ball Joint ALL56267
ALL56214 Adjustable Upper Ball Joints
Most popular upper joint used. Originally used in
Dodge, Chrysler and Plymouth cars. Fits Allstar ball With mono-ball joints, upper control arm angles
joint holders and Lefthander chassis style upper con- can be adjusted. Joints include plate, ball, tapered
trol arm or where a screw-in type ball joint is required. shaft, adjuster bushings and nut.
Part No.
Description
(Replaces Moog K772 or AFCO 20034). ALL56260 LH Large GM Joint (ALL56204 Style)
ALL56261 RH Large GM Joint (ALL56204 Style)
ALL56264 LH Mid-Size GM Joint (ALL56220 Style)
Bolt-In Upper Ball Joints ALL56204 ALL56265 RH Mid-Size GM Joint (ALL56220 Style)
Adjustable Screw-In Upper Ball Joint (ALL56214 Style)
ALL56267
Fits UB Machine style upper control arm Replacement Parts
where a bolt-in style ball joint is required. ALL56262 Stud For ALL56260, ALL56261 And ALL56267
(Replaces Moog K6024, TRW 10185, or AFCO ALL56266 Stud For ALL56264 And ALL56265
20031.) Outer mounting bolt holes are 2.82" CTC. ALL99098 Replacement Mono Ball Bearing 5/8"
Taper Reamers
Repair or enlarge tapered holes to accept tie rod ends
ALL56208 or ball joints. Reamer may be used in a drill with a 1/2"
%ROW LQ W\SH MRLQW ¿WV ,PSDOD VSLQGOH &DQ EH chuck by removing the T-handle.
used to raise roll center on street stock and Part No. Description
PRGL¿HG FDUV )LWV ,PSDOD &DPDUR DQG &K- ALL11170 1-1/2" Per Ft. 7.15°
2" Per Ft. 9.56°
ALL11172
evelle spindles. (Replaces Moog K6136, TRW
10269 or AFCO 20032-1). Outer mounting bolt
holes are 2.82" CTC. TAPER REAMER SPECIFICATIONS FOR BALL JOINTS
Part No. Taper Specs Part No. Taper Specs
Ball Joint Ball Joint
ALL56204 1-1/2" Per Ft. ALL56217 1-1/2" Per Ft.
ALL56220 ALL56206 2" Per Ft. ALL56218 2" Per Ft.
)LWV IXOO VL]H ,PSDOD VSLQGOHV $OVR ¿WV ALL56208 2" Per Ft. ALL56220 2" Per Ft.
1971-81 Camaro and 1973-88 Chevelle/Monte ALL56210 1-1/2" Per Ft. ALL56280 1-1/2" Per Ft.
2" Per Ft.
ALL56284
1-1/2" Per Ft.
ALL56212
Carlo. (Replaces Moog K5208, TRW 10268 or ALL56214 1-1/2" Per Ft. ALL56286 1-1/2" Per Ft.
AFCO 20032). Outer mounting bolt holes are 2.50" ALL56216 1-1/2" Per Ft.
CTC.
