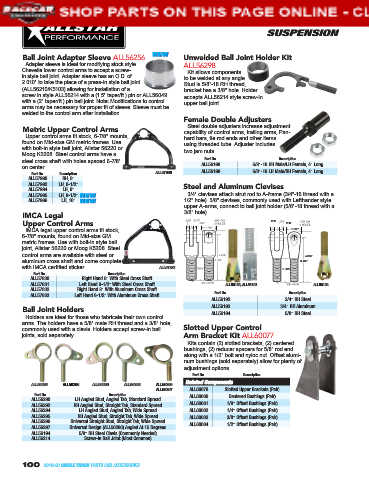

Page 104 - 2019-2020 Racecar Engineering Circle Track Parts and Accessories Catalog

SUSPENSION

Ball Joint Adapter Sleeve ALL56256 Unwelded Ball Joint Holder Kit
Adapter sleeve is ideal for modifying stock style ALL56298
Chevelle lower control arms to accept a screw- Kit allows components
in style ball joint. Adapter sleeve has an O.D. of to be welded at any angle.
2.010" to take the place of a press-in style ball joint Stud is 5/8"-18 RH thread,
(ALL56210/K5103) allowing for installation of a bracket has a 3/8" hole. Holder
screw in style ALL56214 with a (1.5" taper/ft.) pin or ALL56049 accepts ALL56214 style screw-in
ZLWK D WDSHU IW SLQ EDOO MRLQW 1RWH 0RGL¿FDWLRQV WR FRQWURO upper ball joint.
DUPV PD\ EH QHFHVVDU\ IRU SURSHU ¿W RI VOHHYH 6OHHYH PXVW EH
welded to the control arm after installation.
Female Double Adjusters
Steel double adjusters increase adjustment
Metric Upper Control Arms capability of control arms, trailing arms, Pan-
8SSHU FRQWURO DUPV ¿W VWRFN PRXQWV hard bars, tie rod ends and other items
found on Mid-size GM metric frames. Use using threaded tube. Adjuster includes
with bolt-in style ball joint, Allstar 56220 or two jam nuts.
Moog K5208. Steel control arms have a
Part No. Description
steel cross shaft with holes spaced 6-7/8" ALL56198 5/8"-18 RH Male/LH Female, 4" Long
on center.
ALL57990 ALL56199 5/8"-18 LH Male/RH Female, 4" Long
Part No. Description
ALL57990 RH, 8"
ALL57992 LH, 8-1/2" Steel and Aluminum Clevises
ALL57994 LH, 9"
ALL57995 LH, 9-1/2" 3/4" clevises attach strut rod to A-frame (3/4"-16 thread with a
ALL57996 LH, 10" 1/2" hole). 5/8" clevises, commonly used with Lefthander style
upper A-arms, connect to ball joint holder (5/8"-18 thread with a
IMCA Legal 3/8" hole).
Upper Control Arms .230" .230"
,0&$ OHJDO XSSHU FRQWURO DUPV ¿W VWRFN 1.000"
6-7/8" mounts, found on Mid-size GM
metric frames. Use with bolt-in style ball
joint, Allstar 56220 or Moog K5208. Steel
control arms are available with steel or 4.000"
aluminum cross shaft and come complete 3.460"
ZLWK ,0&$ FHUWL¿HG VWLFNHU ALL57831 2.000"
Part No. Description
ALL57830 Right Hand 8" With Steel Cross Shaft
ALL57831 Left Hand 8-1/2" With Steel Cross Shaft ALL56192, ALL56193 ALL56194
ALL57832 Right Hand 8" With Aluminum Cross Shaft
ALL57833 Left Hand 8-1/2" With Aluminum Cross Shaft Part No. Description
ALL56192 3/4" RH Steel
ALL56193 3/4" RH Aluminum
Ball Joint Holders ALL56194 5/8" RH Steel
Holders are ideal for those who fabricate their own control
arms. The holders have a 5/8" male RH thread and a 3/8" hole,
commonly used with a clevis. Holders accept screw-in ball Slotted Upper Control
joints, sold separately. Arm Bracket Kit ALL60077
Kits contain (2) slotted brackets, (2) centered
bushings, (2) reducer spacers for 5/8" rod end
along with a 1/2" bolt and nyloc nut. Offset alumi-
num bushings (sold separately) allow for plenty of
adjustment options.
Part No. Description
Related Components
ALL56294 ALL56295 ALL56290 ALL56292 ALL56296
ALL56297 ALL60078 Slotted Upper Brackets (Pair)
Part No. Description ALL60080 Centered Bushings (Pair)
ALL56290 LH Angled Stud, Angled Tab, Standard Spread
ALL56292 RH Angled Stud, Straight Tab, Standard Spread ALL60081 1/8" Offset Bushings (Pair)
ALL56294 LH Angled Stud, Angled Tab, Wide Spread ALL60082 1/4" Offset Bushings (Pair)
ALL56295 RH Angled Stud, Straight Tab, Wide Spread ALL60083 3/8" Offset Bushings (Pair)
ALL56296 Universal Straight Stud, Straight Tab, Wide Spread ALL60084 1/2" Offset Bushings (Pair)
ALL56297 Universal Design (ALL56296) Angled At 15 Degrees
ALL56194 5/8" RH Steel Clevis (Commonly Needed)
ALL56214 Screw-In Ball Joint (Most Common)

100 2019-20 CIRCLE TRACK PARTS AND ACCESSORIES
