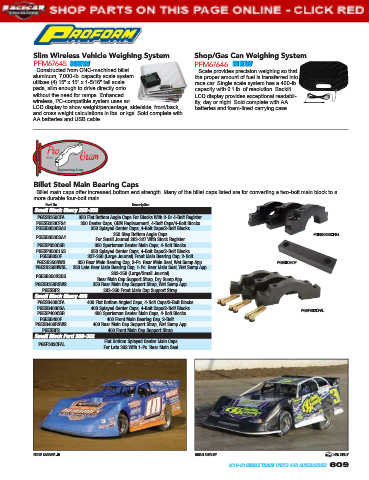

Page 613 - 2019-2020 Racecar Engineering Circle Track Parts and Accessories Catalog

Slim Wireless Vehicle Weighing System Shop/Gas Can Weighing System
PFM67645 PFM67646
Constructed from CNC-machined billet Scale provides precision weighing so that
aluminum, 7,000-lb. capacity scale system the proper amount of fuel is transferred into
utilizes (4) 15" x 15" x 1-5/16" tall scale race car. Single scale system has a 400-lb.
pads, slim enough to drive directly onto capacity with 0.1 lb. of resolution. Backlit
without the need for ramps. Enhanced LCD display provides exceptional readabil-
wireless, PC-compatible system uses an ity, day or night. Sold complete with AA
LCD display to show weight/percentage, side/side, front/back, batteries and foam-lined carrying case.
and cross weight calculations in lbs. or kgs. Sold complete with
AA batteries and USB cable.

Billet Steel Main Bearing Caps
Billet main caps offer increased bottom end strength. Many of the billet caps listed are for converting a two-bolt main block to a
more durable four-bolt main.
Part No. Description
Small Block Chevy 265-350
PGESB350CFA 350 Flat Bottom Angle Caps For Blocks With 2-Or 4-Bolt Register
PGESB350CFS4 350 Center Caps, OEM Replacement, 4-Bolt Caps/4-Bolt Blocks
PGESB350CSA2 350 Splayed Center Caps, 4-Bolt Caps/2-Bolt Blocks
350 Step Bottom Angle Caps PGESB350CFS4
PGESB350CSA4
For Small Journal 283-327 With Stock Register
PGESP350CSR 350 Sportsman Center Main Caps, 4-Bolt Blocks
PGESP350C15S 350 Splayed Center Caps, 4-Bolt Caps/2-Bolt Blocks
PGESB350F 327-350 (Large Journal) Front Main Bearing Cap, 2-Bolt
PGESB350RWS 350 Rear Main Bearing Cap, 2-Pc. Rear Main Seal, Wet Sump App. PGESB350F
PGESB350RWSL 350 Late Rear Main Bearing Cap, 1-Pc. Rear Main Seal, Wet Sump App.
PGESB350RSDS 283-350 (Large/Small Journal)
Rear Main Cap Support Strap, Dry Sump App.
PGESB350RSWS 350 Rear Main Cap Support Strap, Wet Sump App.
PGESBFS 283-350 Front Main Cap Support Strap
Small Block Chevy 400
PGESB400CFA 400 Flat Bottom Angled Caps, 4-Bolt Caps/2-Bolt Blocks
PGESB400CSA 400 Splayed Center Caps, 4-Bolt Caps/2-Bolt Blocks
PGESP400CSR 400 Sportsman Center Main Caps, 4-Bolt Blocks PGEF302CFAL
PGESB400F 400 Front Main Bearing Cap, 2-Bolt
PGESB400RSWS 400 Rear Main Cap Support Strap, Wet Sump App.
PGESBFS 400 Front Main Cap Support Strap
Small Block Ford 289-302
Flat Bottom Splayed Center Main Caps
PGEF302CFAL
For Late 302 With 1-Pc. Rear Main Seal

EDDIE CARRIER JR. BRIAN SHIRLEY KEN KELLY
2019-20 CIRCLE TRACK PARTS AND ACCESSORIES 609
