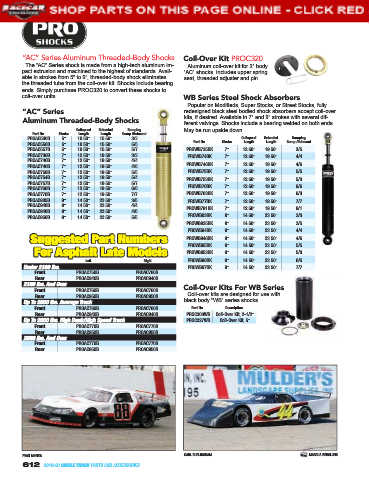

Page 616 - 2019-2020 Racecar Engineering Circle Track Parts and Accessories Catalog

“AC” Series Aluminum Threaded-Body Shocks Coil-Over Kit PROC320
The “AC” Series shock is made from a high-tech alu mi num im- Aluminum coil-over kit for 2" body
pact extrusion and ma chined to the highest of stan dards. Avail- “AC” shocks. Includes upper spring
able in strokes from 5" to 9", thread ed-body shock eliminates seat, threaded adjuster and pin.
the threaded tube from the coil-over kit. Shocks include bearing
ends. Simply purchase PROC320 to convert these shocks to
coil-over units. WB Series Steel Shock Absorbers
3RSXODU RQ 0RGL¿HGV 6XSHU 6WRFNV RU 6WUHHW 6WRFNV IXOO\
“AC” Series redesigned black steel bodied shock absorbers accept coil-over
Aluminum Threaded-Body Shocks kits, if desired. Available in 7" and 9" strokes with several dif-
ferent valvings. Shocks include a bearing welded on both ends.
Collapsed Extended Damping May be run upside down.
Part No. Stroke Length Length Comp./Rebound
PROAC530B 5" 10.50" 15.50" 3/3 Collapsed Extended Damping
PROAC550B 5" 10.50" 15.50" 5/5 Part No. Stroke Length Length Comp./Rebound
PROAC557B 5" 10.50" 15.50" 5/7 PROWB735BK 7" 12.50" 19.50" 3/5
PROAC730B 7" 12.50" 19.50" 3/3 PROWB74BK 7" 12.50" 19.50" 4/4
PROAC740B 7" 12.50" 19.50" 4/4 PROWB746BK 7" 12.50" 19.50" 4/6
PROAC746B 7" 12.50" 19.50" 4/6
PROAC750B 7" 12.50" 19.50" 5/5 PROWB75BK 7" 12.50" 19.50" 5/5
PROAC754B 7" 12.50" 19.50" 5/4 PROWB753BK 7" 12.50" 19.50" 5/3
PROAC757B 7" 12.50" 19.50" 5/7 PROWB76BK 7" 12.50" 19.50" 6/6
PROAC760B 7" 12.50" 19.50" 6/6
PROAC770B 7" 12.50" 19.50" 7/7 PROWB763BK 7" 12.50" 19.50" 6/3
PROAC935B 9" 14.50" 23.50" 3/5 PROWB77BK 7" 12.50" 19.50" 7/7
PROAC940B 9" 14.50" 23.50" 4/4 PROWB791BK 7" 12.50" 19.50" 9/1
PROAC946B 9" 14.50" 23.50" 4/6
PROAC950B 9" 14.50" 23.50" 5/5 PROWB93BK 9" 14.50" 23.50" 3/3
PROWB935BK 9" 14.50" 23.50" 3/5
PROWB94BK 9" 14.50" 23.50" 4/4
Suggested Part Numbers PROWB946BK 9" 14.50" 23.50" 4/6
PROWB95BK 9" 14.50" 23.50" 5/5
For Asphalt Late Models PROWB953BK 9" 14.50" 23.50" 5/3
PROWB96BK 9" 14.50" 23.50" 6/6
Left Right
Under 2100 lbs. PROWB97BK 9" 14.50" 23.50" 7/7
Front PROAC750B PROAC760B
Rear PROAC940B PROAC940B
2100 lbs. And Over Coil-Over Kits For WB Series
Front PROAC760B PROAC760B
Rear PROAC950B PROAC950B Coil-over kits are designed for use with
Up To 2800 lbs. Average Track black body “WB” series shocks.
Front PROAC760B PROAC760B Part No. Description
Rear PROAC940B PROAC940B PROC300WB Coil-Over Kit, 2-1/2"
Up To 2800 lbs. High Bank/High Speed Track PROC327WB Coil-Over Kit, 5"
Front PROAC770B PROAC770B
Rear PROAC950B PROAC950B
2800 lbs. And Over
Front PROAC770B PROAC770B
Rear PROAC950B PROAC950B

RYAN MINTON CARL BURLINGHAM MARCUS BERGLUND
612 2019-20 CIRCLE TRACK PARTS AND ACCESSORIES
