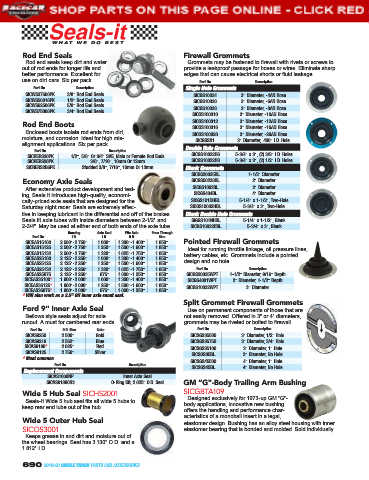

Page 694 - 2019-2020 Racecar Engineering Circle Track Parts and Accessories Catalog

Rod End Seals Firewall Grommets
Rod end seals keep dirt and water *URPPHWV PD\ EH IDVWHQHG WR ¿UHZDOO ZLWK ULYHWV RU VFUHZV WR
out of rod ends for longer life and provide a leakproof passage for hoses or wires. Eliminate sharp
better performance. Excellent for HGJHV WKDW FDQ FDXVH HOHFWULFDO VKRUWV RU ÀXLG OHDNDJH
use on dirt cars. Six per pack. Part No. Description
Part No. Description Single Hole Grommets
SICWS37506PK 3/8" Rod End Seals SICGS10034 3" Diameter, -4AN Hose
SICWS50016PK 1/2" Rod End Seals SICGS10036 3" Diameter, -6AN Hose
SICWS62506PK 5/8" Rod End Seals
SICWS75006PK 3/4" Rod End Seals SICGS10038 3" Diameter, -8AN Hose
SICGS100310 3" Diameter, -10AN Hose
SICGS100312 3" Diameter, -12AN Hose
Rod End Boots SICGS100316 3" Diameter, -16AN Hose
Enclosed boots isolate rod ends from dirt, SICGS100320 3" Diameter, -20AN Hose
moisture, and corrosion. Ideal for high mis- SICGSSB1 3" Diameter, .400" I.D. Hole
alignment applications. Six per pack. Double Hole Grommets
Part No. Description
SICRERS36PK 1/2", 5/8" Or 3/4" SAE, Male or Female Rod Ends SICGS10032H6 5-3/4" x 3", (2) 3/8" I.D. Holes
SICRERS26PK 3/8", 7/16", 10mm Or 12mm SICGS10032H8 5-3/4" x 3", (2) 1/2" I.D. Holes
SICRERS2B6PK Studded 3/8", 7/16", 10mm Or 12mm Blank Grommets
SICGS20035BL 1-1/2" Diameter
Economy Axle Seals SICGS50238BL 2" Diameter
SICGS1003BL 3" Diameter
After extensive product development and test-
ing, Seals It introduces high-quality, economi- SICGS404BL 4" Diameter
cally-priced axle seals that are designed for the SICGS101NHBL 5-1/4" x 1-1/2", Two-Hole
Saturday night racer. Seals are extremely effec- SICGS10032HBL 5-3/4" x 3", Two-Hole
tive in keeping lubricant in the differential and off of the brakes. Blank Double Hole Grommets
6HDOV ¿W D[OH WXEHV ZLWK LQVLGH GLDPHWHUV EHWZHHQ DQG SIGGS101NHBL 5-1/4" x 1-1/2", Blank
2-3/4". May be used at either end of both ends of the axle tube. SICGS10032HBL 5-3/4" x 3", Blank
Housing Axle Seal Fits Axle Pass Through
Part No. I.D. I.D. O.D. Max
SICEAS15100 2.500"-2.750" 1.000" 1.300"-1.400" 1.850" Pointed Firewall Grommets
SICEAS15125 2.500"-2.750" 1.250" 1.500"-1.600" 1.850" Ideal for running throttle linkage, oil pressure lines,
SICEAS15132 2.500"-2.750" 1.320" 1.625"-1.750" 1.850" battery cables, etc. Grommets include a pointed
SICEAS25100 2.125"-2.250" 1.000" 1.300"-1.400" 1.850"
SICEAS25125 2.125"-2.250" 1.250" 1.500"-1.600" 1.850" design and no hole.
SICEAS25132 2.125"-2.250" 1.320" 1.625"-1.750" 1.850" Part No. Description
SICEAS25875 2.125"-2.250" .875" 1.000"-1.250" 1.850" SICGS20035WPT 1-1/2" Diameter, 9/16" Depth
SICEAS35100* 1.900"-2.000" 1.000" 1.300"-1.400" 1.850" SICGS4001WPT 2" Diameter, 1-1/2" Depth
SICEAS35125* 1.900"-2.000" 1.250" 1.500"-1.600" 1.850" SICGS10032WPT 3" Diameter
SICEAS35875* 1.900"-2.000" .875" 1.000"-1.250" 1.850"
* Will also work as a 2.5" GN inner axle snout seal.
Split Grommet Firewall Grommets
Ford 9" Inner Axle Seal Use on permanent components of those that are
Bellows style seals adjust for axle not easily removed. Offered in 3" or 4" diameters,
runout. A must for cambered rear ends. JURPPHWV PD\ EH ULYHWHG RU EROWHG WR ¿UHZDOO
Part No. O.D. Size Color Part No. Description
SICAS9250 2.500" Gold SICSGS35500 3" Diameter, 1/2" Hole
SICAS9218 2.562" Blue SICSGS35750 3" Diameter, 3/4" Hole
SICAS9188* 2.625" Red SICSGS35100 3" Diameter, 1" Hole
SICAS9125 2.750" Silver
* Most common SICSGS35BL 3" Diameter, No Hole
SICSGS45500 4" Diameter, 1" Hole
Part No. Description
Replacement Components SICSGS45BL 4" Diameter, No Hole
SICAS1000NP Inner Axle Seal
SICAS91880R3 O-Ring Kit, 2.625" O.D. Seal GM “G"-Body Trailing Arm Bushing
SICGBTA109
Wide 5 Hub Seal SICHS2001
6HDOV ,W :LGH KXE VHDO ¿WV DOO ZLGH KXEV WR Designed exclusively for 1973-up GM “G”-
keep rear end lube out of the hub body applications, innovative new bushing
offers the handling and performance char-
acteristics of a monoball insert in a legal,
Wide 5 Outer Hub Seal elastomer design. Bushing has an alloy steel housing with inner
SICOS3001 elastomer bearing that is bonded and molded. Sold individually.
Keeps grease in and dirt and moisture out of
the wheel bearings. Seal has 3.130" O.D. and a
1.812" I.D.
