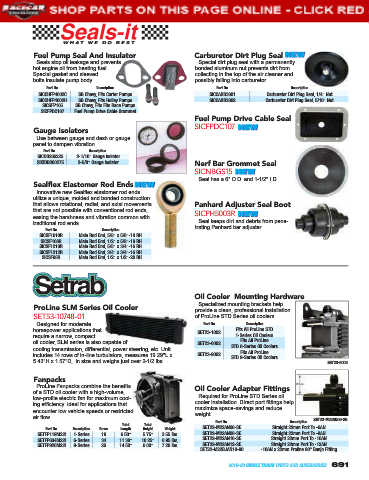

Page 695 - 2019-2020 Racecar Engineering Circle Track Parts and Accessories Catalog

Fuel Pump Seal And Insulator Carburetor Dirt Plug Seal
Seals stop oil leakage and prevents Special dirt plug seal with a permanently
hot engine oil from heat ing fuel. bonded aluminum nut prevents dirt from
Special gasket and sleeved collecting in the top of the air cleaner and
bolts in su late pump body. possibly falling into carburetor.
Part No. Description Part No. Description
SICCHFP4002C SB Chevy, Fits Carter Pumps SICCARB3001 Carburetor Dirt Plug Seal, 1/4" Nut
SICCHFP4002H SB Chevy, Fits Holley Pumps SICCARB3002 Carburetor Dirt Plug Seal, 5/16" Nut
SICSFP105 SB Chevy, Fits Fits Race Pumps
SICFPDC107 Fuel Pump Drive Cable Grommet
Fuel Pump Drive Cable Seal
SICFPDC107
Gauge Isolators
Use between gauge and dash or gauge
panel to dampen vibration.
Part No. Description
SICDB206225 2-1/16" Gauge Isolator
SICIDB260275 2-5/8" Gauge Isolator Nerf Bar Grommet Seal
SICNBGS15
Seal has a 6" O.D. and 1-1/2" I.D.
5GCNƃGZ 'NCUVQOGT 4QF 'PFU
,QQRYDWLYH QHZ 6HDOÀH[ HODVWRPHU URG HQGV
utilize a unique, molded and bonded construction
that allows rotational, radial, and axial movements Panhard Adjuster Seal Boot
that are not possible with conventional rod ends, SICPH5003R
easing the harshness and vibration common with
traditional rod ends. Seal keeps dirt and debris from pene-
trating Panhard bar adjuster.
Part No. Description
SICSF1010R Male Rod End, 5/8" x 5/8"-18 RH
SICSF108R Male Rod End, 1/2" x 5/8"-18 RH
SICSF1210R Male Rod End, 5/8" x 3/4"-16 RH
SICSF1212R Male Rod End, 3/4" x 3/4"-16 RH
SICSF88R Male Rod End, 1/2" x 1/2"-20 RH

Oil Cooler Mounting Hardware
Specialized mounting brackets help
ProLine SLM Series Oil Cooler provide a clean, professional installation
SET53-10748-01 of ProLine STD Series oil coolers.
Designed for moderate Part No. Description
horsepower applications that SET23-1002 Fits All ProLine STD
require a narrow, compact 1-Series Oil Coolers
Fits All ProLine
oil cooler, SLM series is also capable of SET23-6002 STD 6-Series Oil Coolers
cooling transmission, differential, power steering, etc. Unit Fits All ProLine
includes 14 rows of in-line turbulators, measures 19.29"L x SET23-9002 STD 9-Series Oil Coolers
5.43"H x 1.57"D, in size and weighs just over 2-1/2 lbs. SET23-6002

Fanpacks
3UR/LQH )DQSDFNV FRPELQH WKH EHQH¿WV Oil Cooler Adapter Fittings
of a STD oil cooler with a high-volume, Required for ProLine STD Series oil
ORZ SUR¿OH HOHFWULF IDQ IRU PD[LPXP FRRO- FRROHU LQVWDOODWLRQ 'LUHFW SRUW ¿WWLQJV KHOS
LQJ HI¿FLHQF\ ,GHDO IRU DSSOLFDWLRQV WKDW maximize space-savings and reduce
encounter low vehicle speeds or restricted weight.
DLU ÀRZ SET22-M22AN06-SE
Part No. Description
Total Total SET22-M22AN06-SE Straight 22mm Port To -6AN
Part No. Description Rows Length Height Weight
SETFP119M22I 1-Series 19 6.50" 5.75" 3.55 lbs. SET22-M22AN08-SE Straight 22mm Port To -8AN
SETFP634M22I 6-Series 34 11.38" 10.25" 8.95 lbs, SET22-M22AN10-SE Straight 22mm Port To -10AN
SETFP920M22I 9-Series 20 14.50" 6.00" 7.20 lbs. SET22-M22AN12-SE Straight 22mm Port To -12AN
SET22-M22BJAN10-90 -10AN x 22mm Proline 90° Banjo Fitting
2019-20 CIRCLE TRACK PARTS AND ACCESSORIES 691
