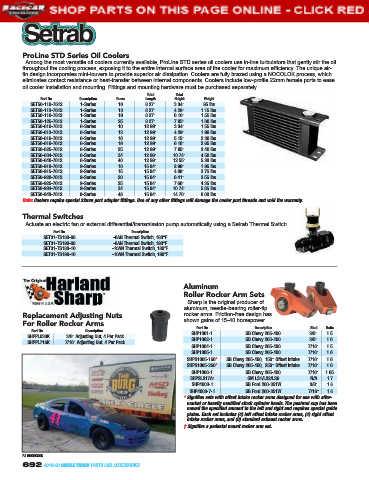

Page 696 - 2019-2020 Racecar Engineering Circle Track Parts and Accessories Catalog

ProLine STD Series Oil Coolers
Among the most versatile oil coolers currently available, ProLine STD series oil coolers use in-line turbulators that gently stir the oil
WKURXJKRXW WKH FRROLQJ SURFHVV H[SRVLQJ LW WR WKH HQWLUH LQWHUQDO VXUIDFH DUHD RI WKH FRROHU IRU PD[LPXP HI¿FLHQF\ 7KH XQLTXH DLU
¿Q GHVLJQ LQFRUSRUDWHV PLQL ORXYHUV WR SURYLGH VXSHULRU DLU GLVVLSDWLRQ &RROHUV DUH IXOO\ EUD]HG XVLQJ D 12&2/2. SURFHVV ZKLFK
HOLPLQDWHV FRQWDFW UHVLVWDQFH RU KHDW WUDQVIHU EHWZHHQ LQWHUQDO FRPSRQHQWV &RROHUV LQFOXGH ORZ SUR¿OH PP IHPDOH SRUWV WR HDVH
oil cooler installation and mounting. Fittings and mounting hardware must be purchased separately.
Total Total
Part No. Description Rows Length Height Weight
SET50-110-7612 1-Series 10 8.27" 3.34" .95 lbs.
SET50-113-7612 1-Series 13 8.27" 4.29" 1.15 lbs.
SET50-119-7612 1-Series 19 8.27" 6.10" 1.55 lbs.
SET50-125-7612 1-Series 25 8.27" 7.95" 1.00 lbs.
SET50-610-7612 6-Series 10 12.99" 3.34" 1.55 lbs.
SET50-613-7612 6-Series 13 12.99" 4.29" 1.90 lbs.
SET50-616-7612 6-Series 16 12.99" 5.15" 2.30 lbs.
SET50-619-7612 6-Series 19 12.99" 6.10" 2.65 lbs.
SET50-625-7612 6-Series 25 12.99" 7.95" 3.40 lbs.
SET50-634-7612 6-Series 34 12.99" 10.74" 4.50 lbs.
SET50-640-7612 6-Series 40 12.99" 12.55" 5.30 lbs.
SET50-910-7612 9-Series 10 15.94" 2.99" 1.95 lbs.
SET50-915-7612 9-Series 15 15.94" 4.88" 2.75 lbs.
SET50-920-7612 9-Series 20 15.94" 6.41" 3.55 lbs.
SET50-925-7612 9-Series 25 15.94" 7.60" 4.35 lbs.
SET50-934-7612 9-Series 34 15.94" 10.74" 5.85 lbs.
SET50-948-7612 9-Series 48 15.94" 14.70" 8.00 lbs.
Note: Coolers require special 22mm port adapter fittings. Use of any other fittings will damage the cooler port threads and void the warranty.

Thermal Switches
Actuate an electric fan or external differential/transmission pump automatically using a Setrab Thermal Switch.
Part No. Description
SET31-TS180-08 -8AN Thermal Switch, 180°F
SET31-TS190-08 -8AN Thermal Switch, 190°F
SET31-TS180-10 -10AN Thermal Switch, 180°F
SET31-TS190-10 -10AN Thermal Switch, 190°F

Aluminum
Roller Rocker Arm Sets
Sharp is the original producer of
aluminum, needle-bearing roller-tip
Replacement Adjusting Nuts rocker arms. Friction-free design has
For Roller Rocker Arms shown gains of 15-40 horsepower.
Part No. Description Stud Ratio
Part No. Description SHP1001-1 SB Chevy 265-400 3/8" 1.5
SHPPL038K 3/8" Adjusting Nut, 4 Per Pack
SHPPL716K 7/16" Adjusting Nut, 4 Per Pack SHP1002-1 SB Chevy 265-400 3/8" 1.6
SHP1004-1 SB Chevy 265-400 7/16" 1.5
SHP1005-1 SB Chevy 265-400 7/16" 1.6
SHPS1005-150* SB Chevy 265-400, .150" Offset Intake 7/16" 1.6
SHPS1005-250* SB Chevy 265-400, .250" Offset Intake 7/16" 1.6
SHP1006-1 SB Chevy 265-400 7/16" 1.65
SHPSLS17A † GM LS1/LS2/LS6 N/A 1.7
SHP4003-1 SB Ford 260-351W 3/8" 1.6
SHP4003-7-1 SB Ford 260-351W 7/16" 1.6
* Signifies sets with offset intake rocker arms designed for use with after-
market or heavily modified stock cylinder heads. The pushrod cup has been
moved the specified amount to the left and right and requires special guide
plates. Each set includes (4) left offset intake rocker arms, (4) right offset
intake rocker arms, and (8) standard exhaust rocker arms.
† Signifies a pedestal mount rocker arm set.

RJ HUGHGSON
692 2019-20 CIRCLE TRACK PARTS AND ACCESSORIES
