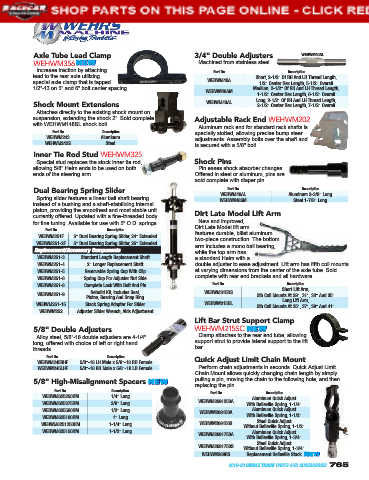

Page 769 - 2019-2020 Racecar Engineering Circle Track Parts and Accessories Catalog

Axle Tube Lead Clamp 3/4" Double Adjusters WEHWM40AL
WEHWM356 Machined from stainless steel.
Increase traction by attaching Part No. Description
lead to the rear axle utilizing WEHWM40A Short, 2-1/2" Of RH And LH Thread Length,
special axle clamp that is tapped 1/2" Center Hex Length, 5-1/2" Overall
1/2"-13 on 5" and 6" bolt center spacing. WEHWM40AM Medium, 2-1/2" Of RH And LH Thread Length,
1-1/2" Center Hex Length, 6-1/2" Overall
Long, 2-1/2" Of RH And LH Thread Length,
WEHWM40AL
Shock Mount Extensions 2-1/2" Center Hex Length, 7-1/2" Overall
Attaches directly to the existing shock mount on
suspension, extending the shock 2". Sold complete Adjustable Rack End WEHWM202
with WEHWM148SL shock bolt.
Aluminum rack end for standard rack shafts is
Part No. Description specially slotted, allowing precise bump steer
WEHWM243 Aluminum adjustments. Assembly bolts over the shaft and
WEHWM243S Steel
is secured with a 5/8" bolt.
Inner Tie Rod Stud WEHWM325
Special stud replaces the stock inner tie rod, Shock Pins
allowing 5/8" Heim ends to be used on both Pin eases shock absorber changes.
ends of the steering arm. Offered in steel or aluminum, pins are
sold complete with diaper pin.
Dual Bearing Spring Slider Part No. Description
WEHWM48AL Aluminum 2-3/8" Long
Spring slider features a linear ball shaft bearing WEHWM48SM Steel 1-7/8" Long
instead of a bushing and a shaft-stabilizing internal
piston, providing the smoothest and most stable unit
FXUUHQWO\ RIIHUHG 8SGDWHG ZLWK D ¿QH WKUHDGHG ERG\ Dirt Late Model Lift Arm
IRU ¿QH WXQLQJ $YDLODEOH IRU XVH ZLWK 2 ' VSULQJV New and improved,
Dirt Late Model lift arm
Part No. Description
WEHWM251F 5" Dual Bearing Spring Slider, 24" Extended features durable, billet aluminum
WEHWM251-2F 5" Dual Bearing Spring Slider, 26" Extended two-piece construction. The bottom
arm includes a mono ball bearing,
Replacement/Accessory Components while the top arm has
WEHWM251-3 Standard Length Replacement Shaft a standard Heim with a
WEHWM251-4 2" Longer Replacement Shaft GRXEOH DGMXVWHU WR HDVH DGMXVWPHQW /LIW DUP KDV ¿IWK FRLO PRXQWV
WEHWM251-5 Removable Spring Cup With Clip at varying dimensions from the center of the axle tube. Sold
WEHWM251-6 Spring Cup For Adjuster Nut Side complete with rear end brackets and all hardware.
WEHWM251-8 Complete Lock With Bolt And Pin Part No. Description
Rebuild Kit, Includes Seal, WEHWM315DS Short Lift Arm,
WEHWM251-9 5th Coil Mounts At 29", 31", 33" And 35"
Piston, Bearing And Snap Ring Long Lift Arm,
WEHWM251-15 Stack Spring Adapter For Slider WEHWM315DL 5th Coil Mounts At 35", 37", 39" And 41"
WEHWM252 Adjuster Slider Wrench, Aids Adjustment
Lift Bar Strut Support Clamp
5/8" Double Adjusters WEHWM215SC
Alloy steel, 5/8"-18 double adjusters are 4-1/4" Clamp attaches to the rear end tube, allowing
long, offered with choice of left or right hand support strut to provide lateral support to the lift
threads. bar.
Part No. Description
WEHWM245RHF 5/8"-18 LH Male x 5/8"-18 RH Female Quick Adjust Limit Chain Mount
WEHWM245LHF 5/8"-18 RH Male x 5/8"-18 LH Female Perform chain adjustments in seconds. Quick Adjust Limit
Chain Mount allows quickly changing chain length by simply
5/8" High-Misalignment Spacers pulling a pin, moving the chain to the following hole, and then
replacing the pin.
Part No. Description
Part No. Description
WEHWM625250HM 1/4" Long Aluminum Quick Adjust
WEHWM625375HM 3/8" Long WEHWM2691250A With Belleville Spring, 1-1/4"
WEHWM625500HM 1/2" Long WEHWM269150A Aluminum Quick Adjust
WEHWM625100HM 1" Long With Belleville Spring, 1-1/2"
Steel Quick Adjust
WEHWM6251250HM 1-1/4" Long WEHWM269150S Without Belleville Spring, 1-1/2"
WEHWM625150HM 1-1/2" Long Aluminum Quick Adjust
WEHWM2691750A
With Belleville Spring, 1-3/4"
Steel Quick Adjust
WEHWM2691750S
Without Belleville Spring, 1-3/4"
WEHWM269RS Replacement Belleville Stack
2019-20 CIRCLE TRACK PARTS AND ACCESSORIES 765
