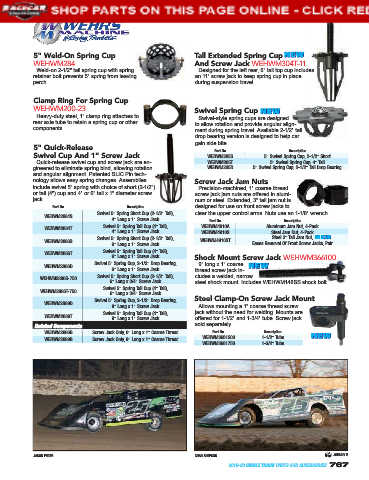

Page 771 - 2019-2020 Racecar Engineering Circle Track Parts and Accessories Catalog

5" Weld-On Spring Cup Tall Extended Spring Cup
WEHWM284 And Screw Jack WEHWM304T-11
Weld-on 2-1/2" tall spring cup with spring Designed for the left rear, 6" tall top cup includes
retainer bolt prevents 5" spring from leaving an 11" screw jack to keep spring cup in place
perch. during suspension travel.

Clamp Ring For Spring Cup
WEHWM200-23 Swivel Spring Cup
Heavy-duty steel, 1" clamp ring attaches to Swivel-style spring cups are designed
rear axle tube to retain a spring cup or other to allow rotation and provide angular align-
components.
ment during spring travel. Available 2-1/2" tall
drop bearing version is designed to help car
gain side bite.
5" Quick-Release
Part No. Description
Swivel Cup And 1" Screw Jack WEHWM285S 5" Swivel Spring Cup, 2-1/2" Short
Quick-release swivel cup and screw jack are en- WEHWM285T 5" Swivel Spring Cup, 4" Tall
gineered to eliminate spring bind, allowing rotation WEHWM285D 5" Swivel Spring Cup, 2-1/2" Tall Drop Bearing
and angular alignment. Patented SLIC Pin tech-
nology allows easy spring changes. Assemblies Screw Jack Jam Nuts
include swivel 5" spring with choice of short (2-1/2") Precision-machined, 1" coarse thread
or tall (4") cup and 4" or 6" tall x 1" diameter screw screw jack jam nuts are offered in alumi-
jack. num or steel. Extended, 3" tall jam nut is
Part No. Description designed for use on front screw jacks to
Swivel 5" Spring Short Cup (2-1/2" Tall), clear the upper control arms. Nuts use an 1-1/8" wrench.
WEHWM2884S
4" Long x 1" Screw Jack
Part No. Description
Swivel 5" Spring Tall Cup (4" Tall), WEHWM4910A Aluminum Jam Nut, 4-Pack
WEHWM2884T
4" Long x 1" Screw Jack WEHWM4910S Steel Jam Nut, 4-Pack
Swivel 5" Spring Short Cup (2-1/2" Tall), Steel 3" Tall Jam Nut,
WEHWM2886S 6" Long x 1" Screw Jack WEHWM4910ST Eases Removal Of Front Screw Jacks, Pair
Swivel 5" Spring Tall Cup (4" Tall),
WEHWM2886T
6" Long x 1" Screw Jack Shock Mount Screw Jack WEHWM366100
Swivel 5" Spring Cup, 2-1/2" Drop Bearing,
WEHWM2886D 9" long x 1" coarse
6" Long x 1" Screw Jack thread screw jack in-
Swivel 5" Spring Short Cup (2-1/2" Tall),
WEHWM2886S-750 cludes a welded, narrow
6" Long x 3/4" Screw Jack steel shock mount. Includes WEHWM148SS shock bolt.
Swivel 5" Spring Tall Cup (4" Tall),
WEHWM2886T-750
6" Long x 3/4" Screw Jack
WEHWM2889D Swivel 5" Spring Cup, 2-1/2" Drop Bearing, Steel Clamp-On Screw Jack Mount
9" Long x 1" Screw Jack Allows mounting a 1" coarse thread screw
Swivel 5" Spring Tall Cup (4" Tall), jack without the need for welding. Mounts are
WEHWM2889T
9" Long x 1" Screw Jack offered for 1-1/2" and 1-3/4" tube. Screw jack
Related Components sold separately.
WEHWM2886B Screw Jack Only, 6" Long x 1" Coarse Thread Part No. Description
WEHWM2889B Screw Jack Only, 9" Long x 1" Coarse Thread WEHWM3681500 1-1/2" Tube
WEHWM3681750 1-3/4" Tube
